6-520314-7

6-520314-7

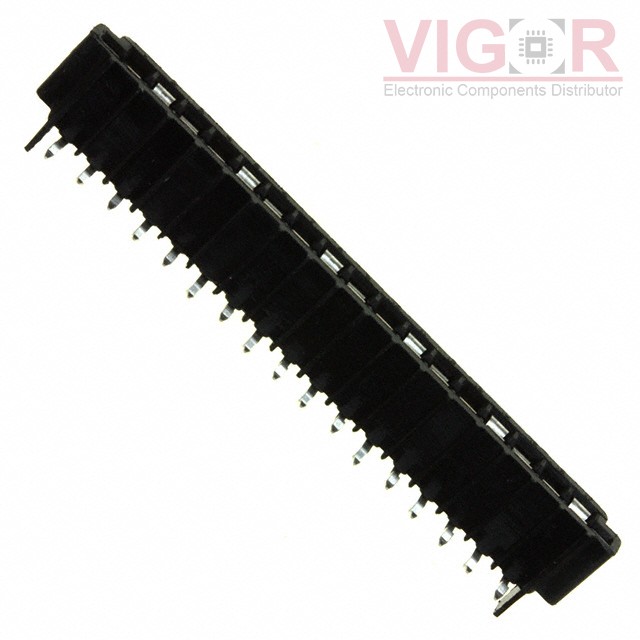

Image is for reference,
please contact us to get the real picture

Part No :

6-520314-7

Manufacturer
TE Connectivity AMP Connectors
Description
CONN FFC TOP 17POS 2.54MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
6-520314-7 PDF
Availability
1064 pieces
Unit Price
$2.37000

Current price of 6-520314-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6-520314-7 Specifications
Type Description
Series:Triomate
Package:Bulk
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Through Hole, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:17
Pitch:0.100" (2.54mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.13mm ~ 0.38mm
Height Above Board:0.190" (4.83mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyester Thermoplastic, Glass Filled
Actuator Material:-
Features:-
Voltage Rating:250V
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
