FH12-20S-0.5SH(54)

FH12-20S-0.5SH(54)

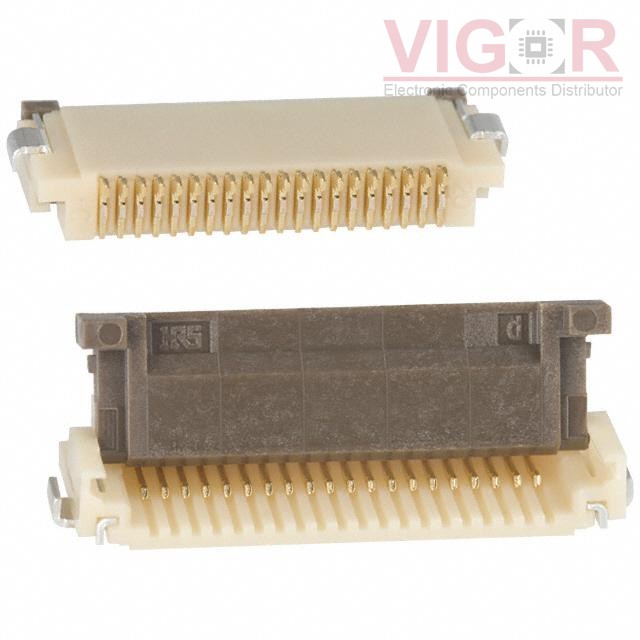

Image is for reference,
please contact us to get the real picture

Part No :

FH12-20S-0.5SH(54)

Manufacturer
Hirose
Description
CONN FFC BOTTOM 20POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
FH12-20S-0.5SH(54) PDF
Availability
0 pieces
Unit Price
$1.23250

Current price of FH12-20S-0.5SH(54) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH12-20S-0.5SH(54) Specifications
Type Description
Series:FH12
Package:Tape & Reel (TR)
Part Status:Last Time Buy
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:20
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Flip Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA), Nylon
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
