0522072260

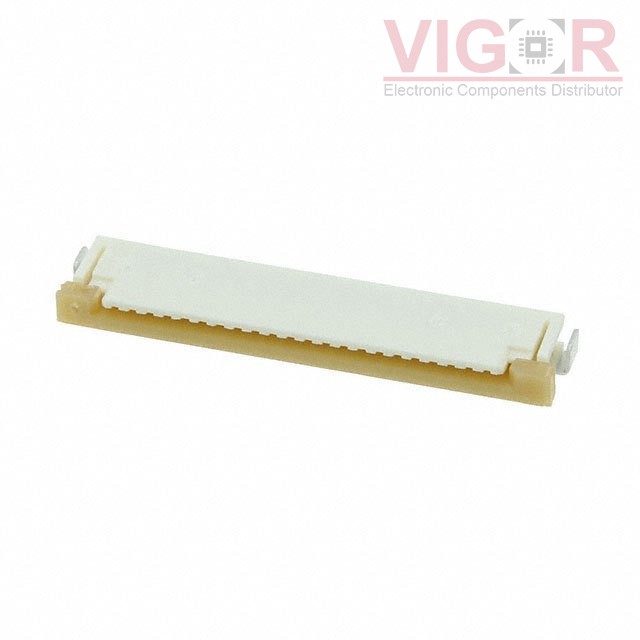

Image is for reference,
please contact us to get the real picture

Part No :: 0522072260

Manufacturer: Woodhead - Molex

Description: CONN FFC FPC TOP 22POS 1MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 0522072260 PDF

Availability: 2600 pieces

Unit Price: ~~$2.50000~~

Current price of 0522072260 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0522072260 Specifications

Type	Description
Series:	52207
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top
Number of Positions:	22
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.106" (2.70mm)
Locking Feature:	Slide Lock
Cable End Type:	Tapered
Contact Material:	Phosphor Bronze
Contact Finish:	Gold
Housing Material:	Polyamide (PA46), Nylon 4/6
Actuator Material:	Polyphenylene Sulfide (PPS)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	125V
Operating Temperature:	-30°C ~ 85°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
