6-520315-1

6-520315-1

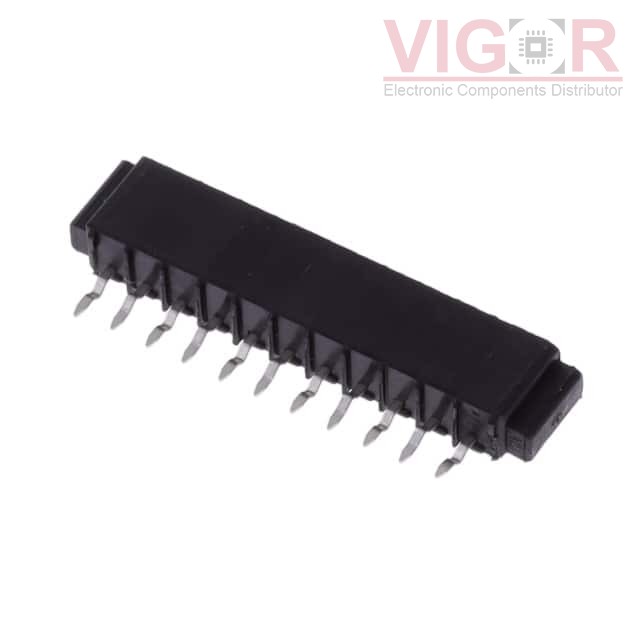

Image is for reference,
please contact us to get the real picture

Part No :

6-520315-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN FFC VERT 11POS 2.54MM PCB
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jun 30 - Jul 04 2025
DataSheet
6-520315-1 PDF
Availability
2351 pieces
Unit Price
$1.72000

Current price of 6-520315-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6-520315-1 Specifications
Type Description
Series:Triomate
Package:Tray
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Through Hole
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:11
Pitch:0.100" (2.54mm)
Termination:Kinked Pin
FFC, FCB Thickness:0.13mm ~ 0.38mm
Height Above Board:0.273" (6.93mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Polyester Thermoplastic, Glass Filled
Actuator Material:-
Features:-
Voltage Rating:250V
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
