0528082170

0528082170

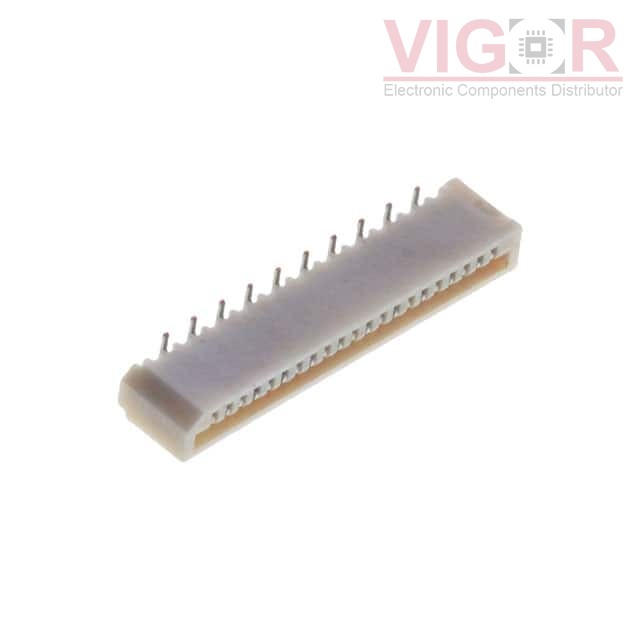

Image is for reference,
please contact us to get the real picture

Part No :

0528082170

Manufacturer
Woodhead - Molex
Description
CONN FPC VERT 21POS 1.00MM SMD
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
0528082170 PDF
Availability
61 pieces
Unit Price
$1.30000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0528082170 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

0528082170 Specifications
Type Description
Series:Easy-On 52808
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount
Connector/Contact Type:Contacts, Vertical - 1 Sided
Number of Positions:21
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.199" (5.05mm)
Locking Feature:-
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyphenylene Sulfide (PPS)
Actuator Material:-
Features:-
Voltage Rating:125V
Operating Temperature:-20°C ~ 85°C
Material Flammability Rating:UL94 V-0
