0524372271

0524372271

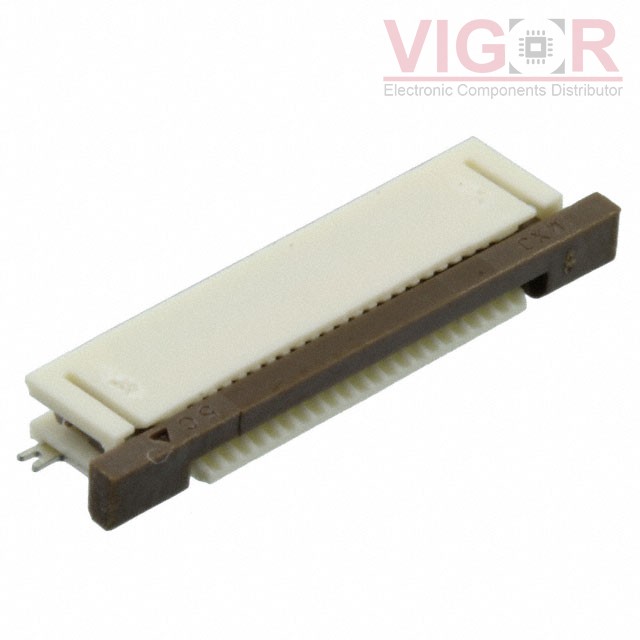

Image is for reference,
please contact us to get the real picture

Part No :

0524372271

Manufacturer
Woodhead - Molex
Description
CONN FFC BOTTOM 22POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
May 21 - May 25 2024
DataSheet
0524372271 PDF
Availability
2324 pieces
Unit Price
$2.62000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 0524372271 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

0524372271 Specifications
Type Description
Series:Easy-On 52437
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:22
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Slide Lock
Cable End Type:Straight, Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Polyamide (PA46), Nylon 4/6, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
