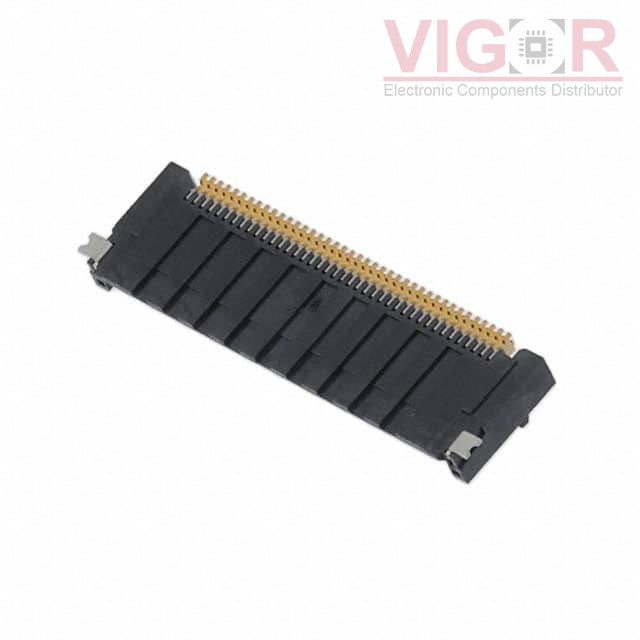

TF46-40S-0.5SH(800)

Image is for reference,
please contact us to get the real picture

Part No :: TF46-40S-0.5SH(800)

Manufacturer: Hirose

Description: CONN FFC 40POS 0.50MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 05 - Jul 09 2025

DataSheet: TF46-40S-0.5SH(800) PDF

Availability: 4995 pieces

Unit Price: ~~$2.27000~~

Current price of TF46-40S-0.5SH(800) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TF46-40S-0.5SH(800) Specifications

Type	Description
Series:	TF46
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Top and Bottom
Number of Positions:	40
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.087" (2.20mm)
Locking Feature:	Flip Lock, Backlock
Cable End Type:	Tabbed
Contact Material:	Copper Alloy
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	50V
Operating Temperature:	-40°C ~ 105°C
Material Flammability Rating:	UL94 V-0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

Hot Products

HOT

FH23-15S-0.3SHW(05)

CONN FPC BOTTOM 15POS 0.30MM R/A

HOT

XF2L-0725-1A

CONN FPC TOP 7POS 0.50MM R/A

HOT

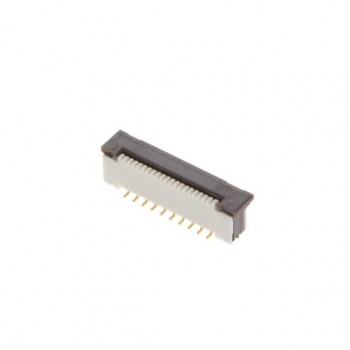

046214020010846+
