ZF5S-50-01-T-WT

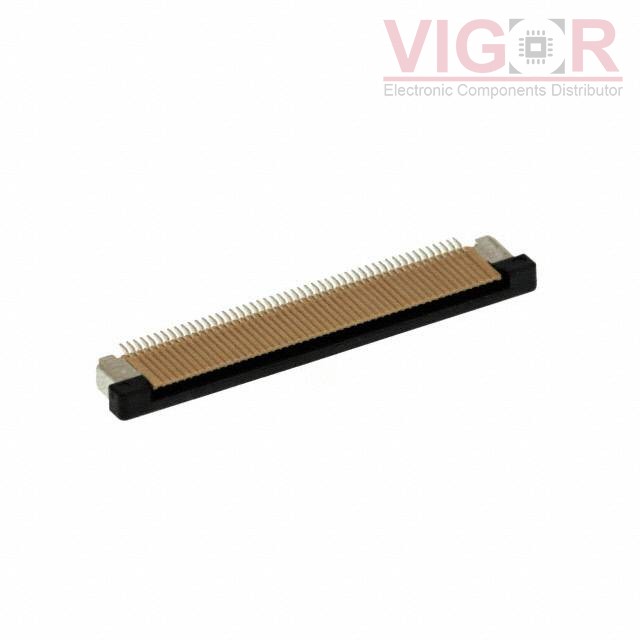

Image is for reference,
please contact us to get the real picture

Part No :: ZF5S-50-01-T-WT

Manufacturer: Samtec, Inc.

Description: ZERO INSERTION FORCE .5MM ASSY

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 15 - Jul 19 2025

DataSheet: ZF5S-50-01-T-WT PDF

Availability: 83 pieces

Unit Price: ~~$2.85000~~

Current price of ZF5S-50-01-T-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZF5S-50-01-T-WT Specifications

Type	Description
Series:	ZF5S
Package:	Tube
Part Status:	Active
Flat Flex Type:	FFC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	50
Pitch:	0.020" (0.50mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.083" (2.10mm)
Locking Feature:	Slide Lock
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin
Housing Material:	Liquid Crystal Polymer (LCP)
Actuator Material:	Liquid Crystal Polymer (LCP)
Features:	Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:	-
Operating Temperature:	-55°C ~ 105°C
Material Flammability Rating:	-
