FH28D-20(10)SB-1SH(98)

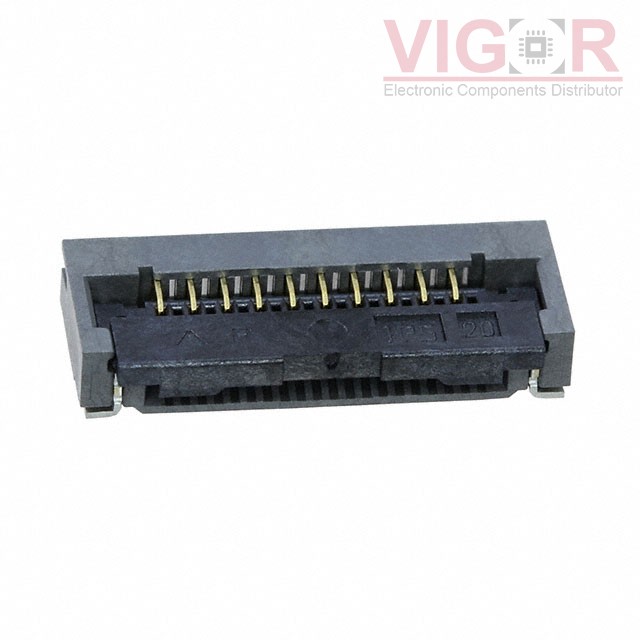

Image is for reference,
please contact us to get the real picture

Part No :: FH28D-20(10)SB-1SH(98)

Manufacturer: Hirose

Description: CONN FFC BOTTOM 20POS 1.00MM R/A

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Aug 17 - Aug 21 2025

DataSheet: FH28D-20(10)SB-1SH(98) PDF

Availability: 0 pieces

Unit Price: ~~$1.97000~~

Current price of FH28D-20(10)SB-1SH(98) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH28D-20(10)SB-1SH(98) Specifications

Type	Description
Series:	FH28
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FFC, FPC
Mounting Type:	Surface Mount, Right Angle
Connector/Contact Type:	Contacts, Bottom
Number of Positions:	20 (10 Loaded)
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.100" (2.54mm)
Locking Feature:	Rotary Lock
Cable End Type:	Tabbed
Contact Material:	-
Contact Finish:	Gold
Housing Material:	Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:	-
Features:	-
Voltage Rating:	-
Operating Temperature:	-
Material Flammability Rating:	UL94 V-0
