0528081470

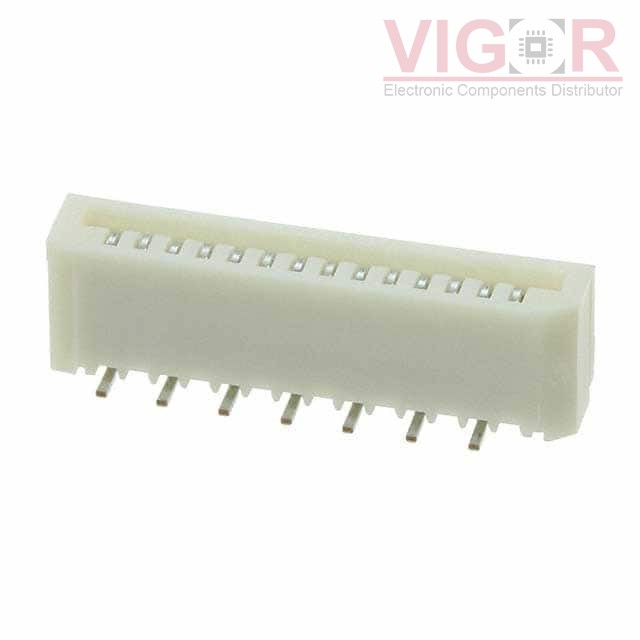

Image is for reference,
please contact us to get the real picture

Part No :: 0528081470

Manufacturer: Woodhead - Molex

Description: CONN FPC VERT 14POS 1.00MM SMD

Catalog: FFC, FPC (Flat Flexible) Connectors

Shipped from: HK warehouse

Expected Shipping Date: Jul 13 - Jul 17 2025

DataSheet: 0528081470 PDF

Availability: 2470 pieces

Unit Price: ~~$0.77000~~

Current price of 0528081470 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0528081470 Specifications

Type	Description
Series:	Easy-On 52808
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Flat Flex Type:	FPC
Mounting Type:	Surface Mount
Connector/Contact Type:	Contacts, Vertical - 1 Sided
Number of Positions:	14
Pitch:	0.039" (1.00mm)
Termination:	Solder
FFC, FCB Thickness:	0.30mm
Height Above Board:	0.199" (5.05mm)
Locking Feature:	-
Cable End Type:	Straight
Contact Material:	Phosphor Bronze
Contact Finish:	Tin Bismuth
Housing Material:	Polyphenylene Sulfide (PPS)
Actuator Material:	-
Features:	-
Voltage Rating:	125V
Operating Temperature:	-20°C ~ 85°C
Material Flammability Rating:	UL94 V-0
