FH19SC-24S-0.5SH(09)

FH19SC-24S-0.5SH(09)

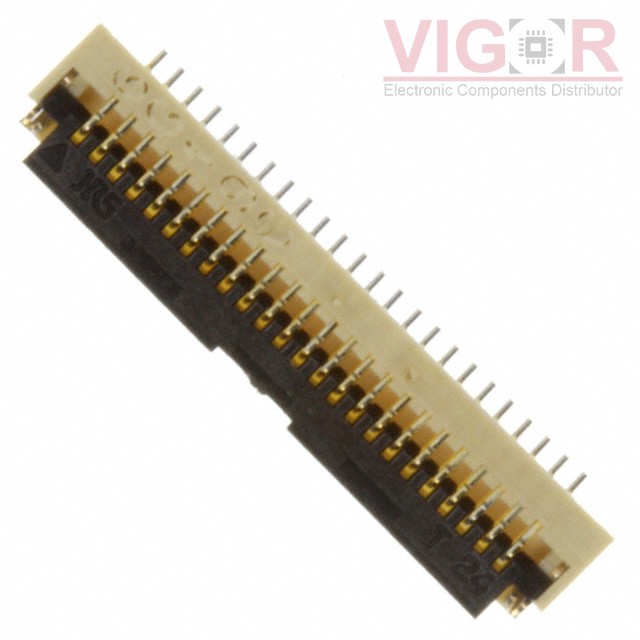

Image is for reference,
please contact us to get the real picture

Part No :

FH19SC-24S-0.5SH(09)

Manufacturer
Hirose
Description
CONN FFC BOTTOM 24POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 13 - Aug 17 2025
DataSheet
FH19SC-24S-0.5SH(09) PDF
Availability
312 pieces
Unit Price
$1.59000

Current price of FH19SC-24S-0.5SH(09) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH19SC-24S-0.5SH(09) Specifications
Type Description
Series:FH19SC
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:24
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.037" (0.95mm)
Locking Feature:Flip Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 V-0
