XF3A-1255-41A

XF3A-1255-41A

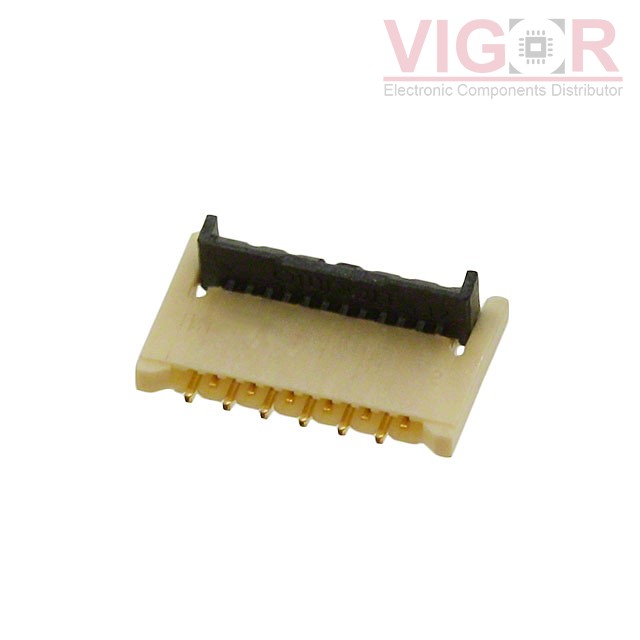

Image is for reference,
please contact us to get the real picture

Part No :

XF3A-1255-41A

Manufacturer
Omron Electronics Components
Description
CONN FPC TOP 12POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 04 - Aug 08 2025
DataSheet
XF3A-1255-41A PDF
Availability
1390 pieces
Unit Price
$1.22000

Current price of XF3A-1255-41A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XF3A-1255-41A Specifications
Type Description
Series:XF3A
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:12
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.12mm
Height Above Board:0.023" (0.59mm)
Locking Feature:Rotary Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:-
Voltage Rating:50V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
