2538-B14G00DBT

2538-B14G00DBT

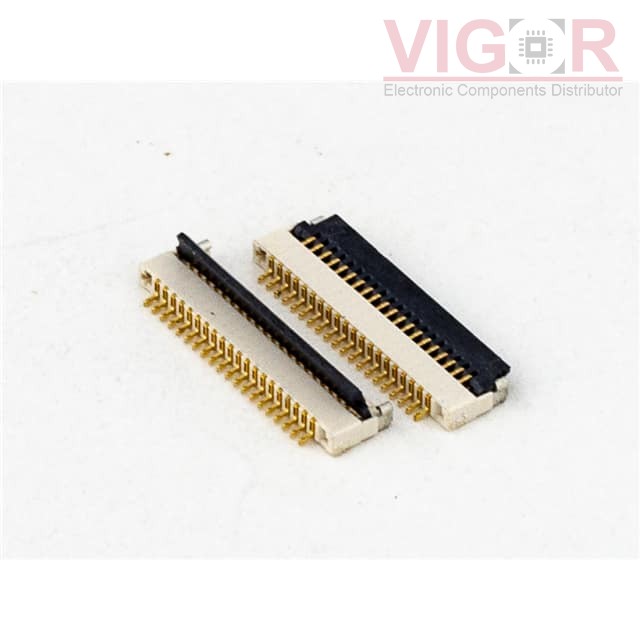

Image is for reference,
please contact us to get the real picture

Part No :

2538-B14G00DBT

Manufacturer
Oupiin
Description
FFC/FPC CONNECTOR, 14 PIN, SMD,
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
2538-B14G00DBT PDF
Availability
190 pieces
Unit Price
$0.67000

Current price of 2538-B14G00DBT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2538-B14G00DBT Specifications
Type Description
Series:2538-B
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:14
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock, Backlock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Liquid Crystal Polymer (LCP)
Features:Solder Retention
Voltage Rating:-
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 68611214122

68611214122

CONN FPC TOP 12POS 1.00MM R/A

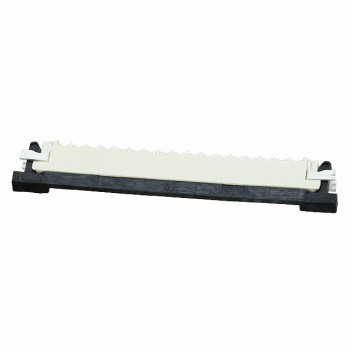

HOT 686116183522

686116183522

CONN FFC BTM 16POS 1MM SMD R/A

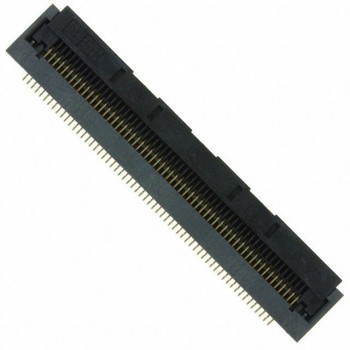

HOT FH28-60S-0.5SH(05)
