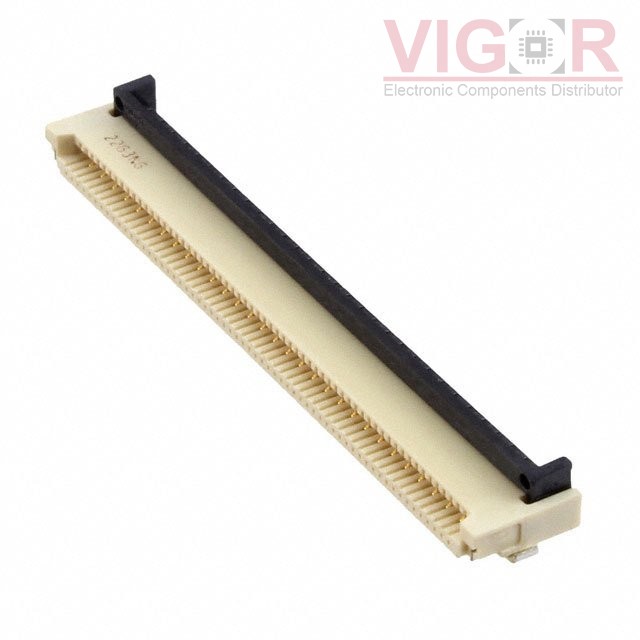

XF3M(1)-2615-1B

XF3M(1)-2615-1B

Image is for reference,
please contact us to get the real picture

Part No :

XF3M(1)-2615-1B

Manufacturer
Omron Electronics Components
Description
CONN FFC FPC 26POS 1.00MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 14 - Aug 18 2025
DataSheet
XF3M(1)-2615-1B PDF
Availability
618 pieces
Unit Price
$1.96000

Current price of XF3M(1)-2615-1B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

XF3M(1)-2615-1B Specifications
Type Description
Series:XF3M
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top and Bottom
Number of Positions:26
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.079" (2.00mm)
Locking Feature:Rotary Lock, Backlock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Liquid Crystal Polymer (LCP), Halogen Free
Features:Solder Retention
Voltage Rating:50V
Operating Temperature:-30°C ~ 85°C
Material Flammability Rating:UL94 V-0
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 0512964033

0512964033

CONN FFC BOTTOM 40POS 0.50MM R/A

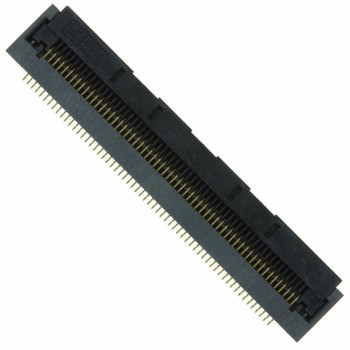

HOT FH28-60S-0.5SH(39)

FH28-60S-0.5SH(39)

CONN FPC/FFC 60POS .5MM

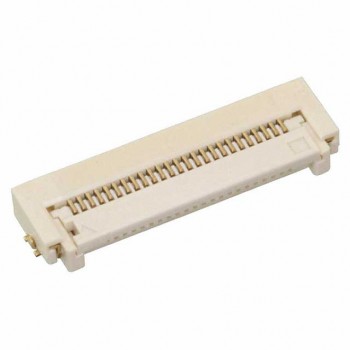

HOT 2-1775333-5
