0522072533

0522072533

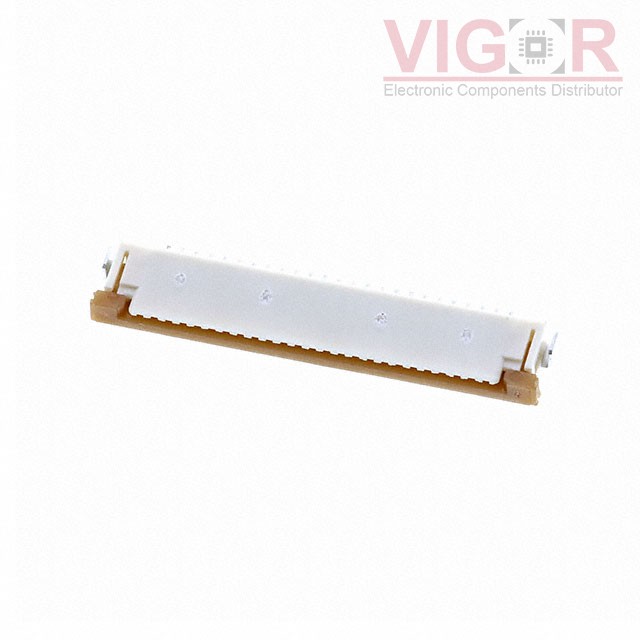

Image is for reference,
please contact us to get the real picture

Part No :

0522072533

Manufacturer
Woodhead - Molex
Description
CONN FFC FPC TOP 25POS 1MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
0522072533 PDF
Availability
2712 pieces
Unit Price
$2.38000

Current price of 0522072533 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0522072533 Specifications
Type Description
Series:Easy-On 52207
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Flat Flex Type:FFC, FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Top
Number of Positions:25
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.106" (2.70mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Phosphor Bronze
Contact Finish:Tin Bismuth
Housing Material:Polyamide (PA), Nylon, Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:125V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
