ZF1-05-01-T-WT

ZF1-05-01-T-WT

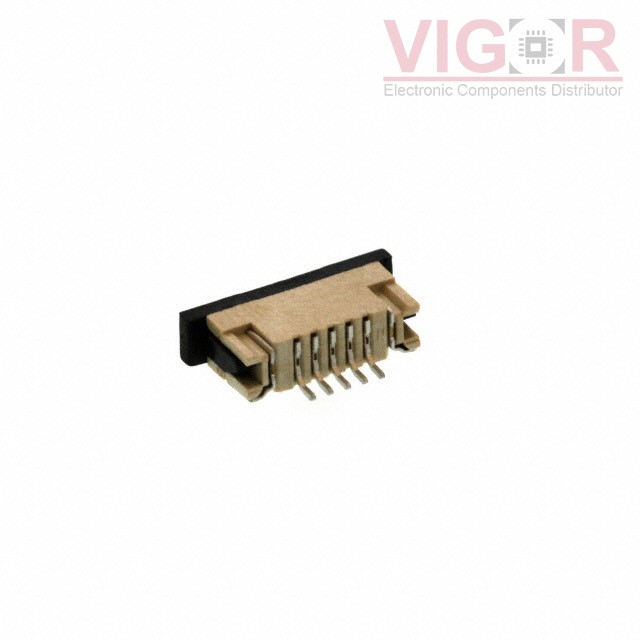

Image is for reference,
please contact us to get the real picture

Part No :

ZF1-05-01-T-WT

Manufacturer
Samtec, Inc.
Description
ZERO INSERTION FORCE 1MM ASSY
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 28 - Aug 01 2025
DataSheet
ZF1-05-01-T-WT PDF
Availability
530 pieces
Unit Price
$0.74000

Current price of ZF1-05-01-T-WT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

ZF1-05-01-T-WT Specifications
Type Description
Series:ZF1
Package:Tube
Part Status:Active
Flat Flex Type:FFC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:5
Pitch:0.039" (1.00mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.118" (3.00mm)
Locking Feature:Slide Lock
Cable End Type:Straight
Contact Material:Phosphor Bronze
Contact Finish:Tin
Housing Material:Liquid Crystal Polymer (LCP)
Actuator Material:Polyphenylene Sulfide (PPS)
Features:Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating:-
Operating Temperature:-55°C ~ 105°C
Material Flammability Rating:UL94 V-2
