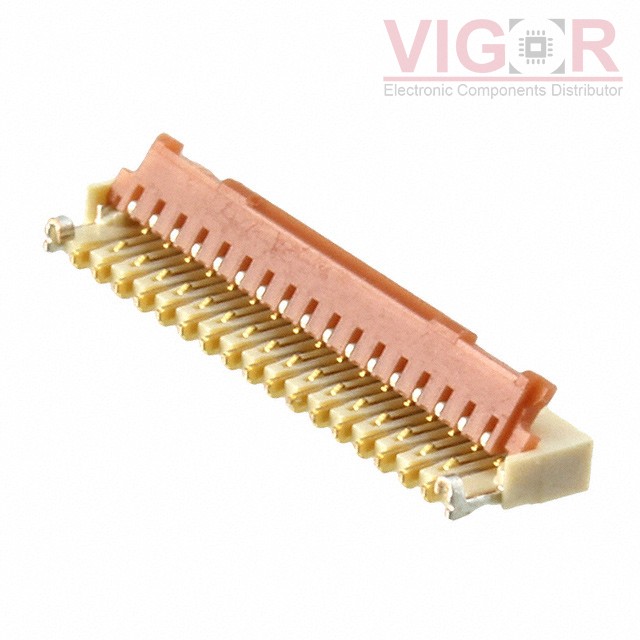

FH36W-33S-0.3SHW(50)

FH36W-33S-0.3SHW(50)

Image is for reference,
please contact us to get the real picture

Part No :

FH36W-33S-0.3SHW(50)

Manufacturer
Hirose
Description
CONN FPC BOTTOM 33POS 0.30MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Aug 07 - Aug 11 2025
DataSheet
FH36W-33S-0.3SHW(50) PDF
Availability
0 pieces
Unit Price
$1.09060

Current price of FH36W-33S-0.3SHW(50) is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

FH36W-33S-0.3SHW(50) Specifications
Type Description
Series:FH36
Package:Tape & Reel (TR)
Part Status:Active
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:33
Pitch:0.012" (0.30mm)
Termination:Solder
FFC, FCB Thickness:0.20mm
Height Above Board:0.039" (1.00mm)
Locking Feature:Flip Lock
Cable End Type:Tabbed
Contact Material:Phosphor Bronze
Contact Finish:Gold
Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
Actuator Material:Polyamide (PA), Nylon
Features:Zero Insertion Force (ZIF)
Voltage Rating:30V
Operating Temperature:-55°C ~ 85°C
Material Flammability Rating:UL94 HB
