IL-FPR-5S-HF-N1

IL-FPR-5S-HF-N1

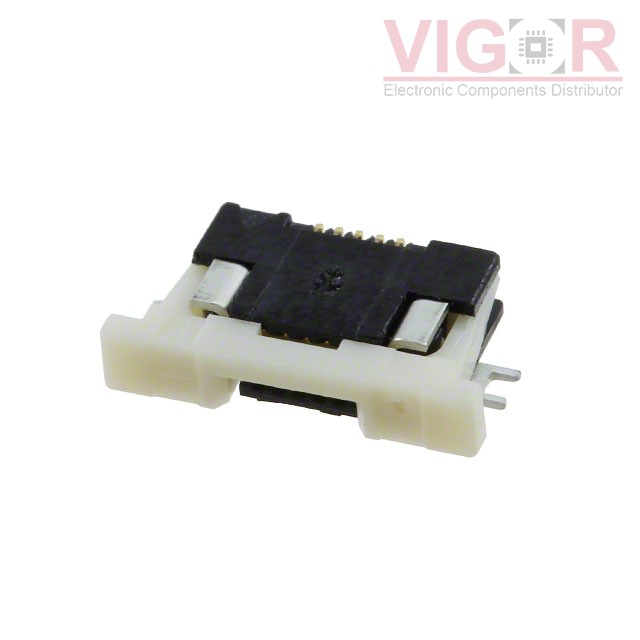

Image is for reference,
please contact us to get the real picture

Part No :

IL-FPR-5S-HF-N1

Manufacturer
JAE Electronics
Description
CONN FPC BOTTOM 5POS 0.50MM R/A
Catalog
FFC, FPC (Flat Flexible) Connectors
Shipped from
HK warehouse
Expected Shipping Date
Jul 13 - Jul 17 2025
DataSheet
IL-FPR-5S-HF-N1 PDF
Availability
0 pieces
Unit Price
$0.00000

Current price of IL-FPR-5S-HF-N1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

IL-FPR-5S-HF-N1 Specifications
Type Description
Series:IL-FPR
Package:Tray
Part Status:Obsolete
Flat Flex Type:FPC
Mounting Type:Surface Mount, Right Angle
Connector/Contact Type:Contacts, Bottom
Number of Positions:5
Pitch:0.020" (0.50mm)
Termination:Solder
FFC, FCB Thickness:0.30mm
Height Above Board:0.075" (1.90mm)
Locking Feature:Slide Lock
Cable End Type:Tapered
Contact Material:Copper Alloy
Contact Finish:Gold
Housing Material:Polyphenylene Sulfide (PPS), Glass Filled
Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
Features:Zero Insertion Force (ZIF)
Voltage Rating:50V
Operating Temperature:-40°C ~ 85°C
Material Flammability Rating:UL94 V-0
