09200030220

09200030220

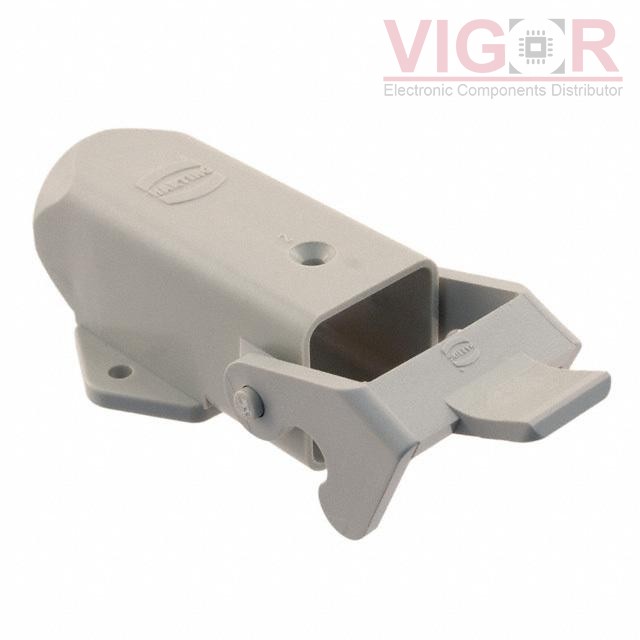

Image is for reference,
please contact us to get the real picture

Part No :

09200030220

Manufacturer
HARTING
Description
CONN BASE SIDE ENTRY SZ3A
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
09200030220 PDF
Availability
1 pieces
Unit Price
$17.14000

Current price of 09200030220 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200030220 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount 90°
Style:Side Entry
Size:3A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG11
Size / Dimension:1.102" L x 1.575" W x 1.055" H (28.00mm x 40.00mm x 26.80mm)
Housing Color:Gray
Features:-
Ingress Protection:IP44
Housing Material:Thermoplastic
Housing Finish:-
Operating Temperature:-40°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
