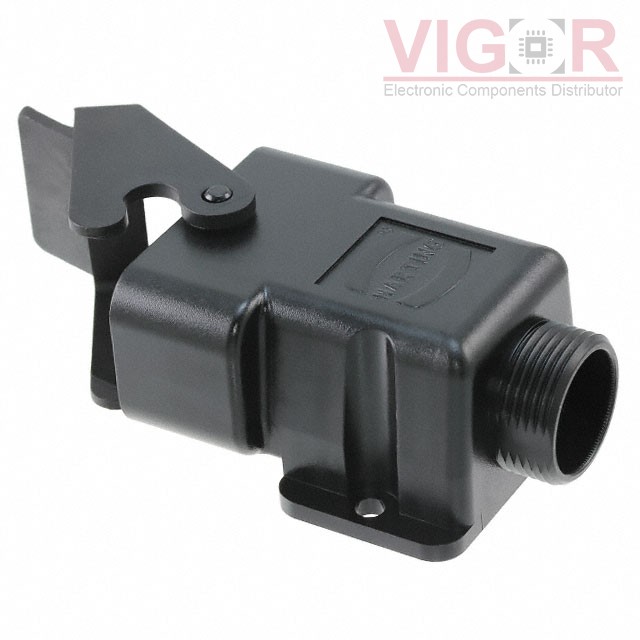

Image is for reference,
please contact us to get the real picture

Part No :

09120080901

Manufacturer
HARTING
Description
CONN BASE SIDE ENTRY PG16
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 03 - Aug 07 2025
DataSheet
09120080901 PDF
Availability
6 pieces
Unit Price
$16.15000

Current price of 09120080901 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09120080901 Specifications
Type Description
Series:Han-Compact®
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount 90°
Style:Side Entry
Size:-
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:PG16
Size / Dimension:1.807" L x 1.181" W x 1.299" H (45.90mm x 30.00mm x 33.00mm)
Housing Color:Black
Features:-
Ingress Protection:IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Housing Material:Thermoplastic
Housing Finish:-
Operating Temperature:-40°C ~ 125°C
