09200030301

09200030301

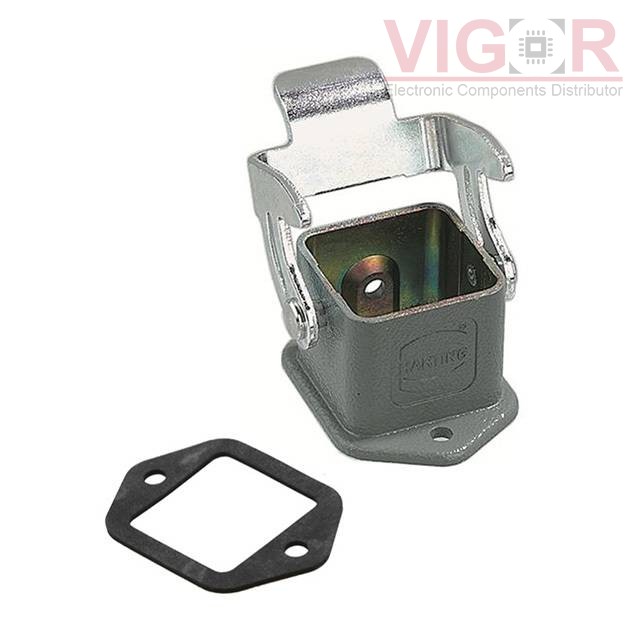

Image is for reference,
please contact us to get the real picture

Part No :

09200030301

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ3A
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 11 - Aug 15 2025
DataSheet
09200030301 PDF
Availability
0 pieces
Unit Price
$10.57000

Current price of 09200030301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09200030301 Specifications
Type Description
Series:Han® A
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:3A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:1.102" L x 1.575" W x 0.906" H (28.00mm x 40.00mm x 23.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP44
Housing Material:Zinc, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
