09300160281

09300160281

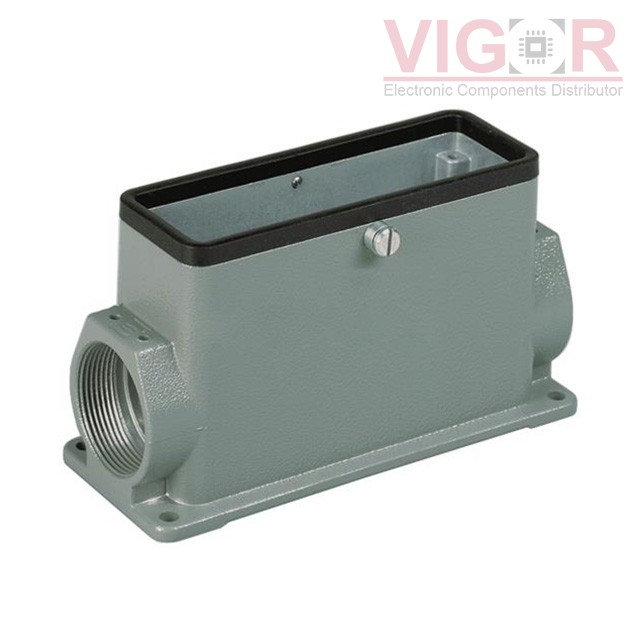

Image is for reference,
please contact us to get the real picture

Part No :

09300160281

Manufacturer
HARTING
Description
CONN BASE SIDE ENTRY SZ16B PG29
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
09300160281 PDF
Availability
5 pieces
Unit Price
$76.98000

Current price of 09300160281 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09300160281 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Base - Box Mount
Style:Side Entry
Size:16B
Lock Location:Locking Clip (1) on Hood
Thread Size:PG29
Size / Dimension:4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)
Housing Color:Gray
Features:Feed Through
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
