09628100901

09628100901

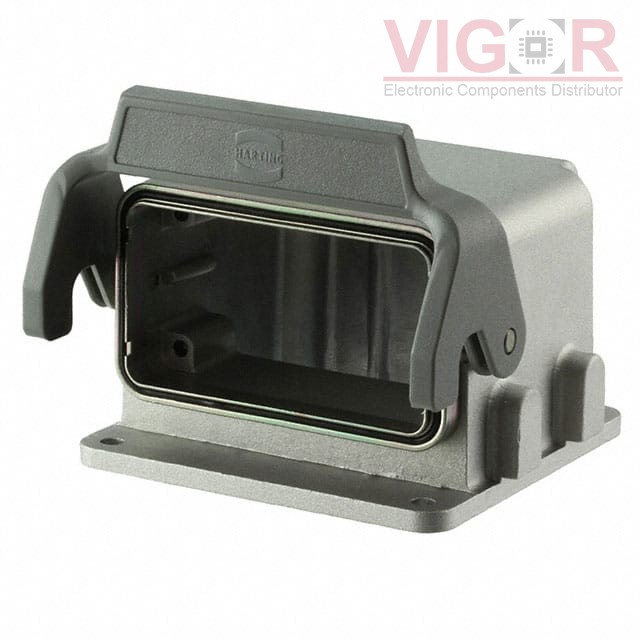

Image is for reference,
please contact us to get the real picture

Part No :

09628100901

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ10B
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
09628100901 PDF
Availability
1 pieces
Unit Price
$96.68000

Current price of 09628100901 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09628100901 Specifications
Type Description
Series:Han® EMC
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount 90°
Style:Bottom Entry
Size:10B
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:3.504" L x 3.228" W x 2.154" H (89.00mm x 82.00mm x 54.70mm)
Housing Color:-
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:-
Operating Temperature:-40°C ~ 125°C
