T1509031000-000

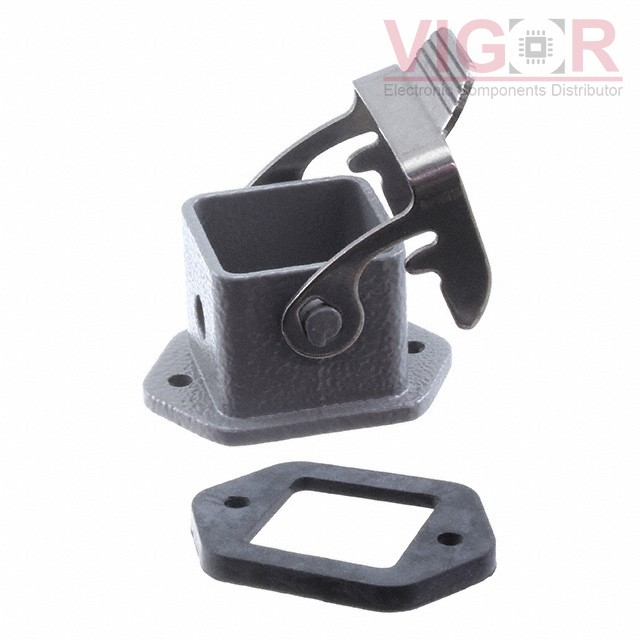

Image is for reference,
please contact us to get the real picture

Part No :

T1509031000-000

Manufacturer
TE Connectivity AMP Connectors
Description
H3A-MAG-S
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Jul 26 - Jul 30 2025
DataSheet
T1509031000-000 PDF
Availability
114 pieces
Unit Price
$6.87000

Current price of T1509031000-000 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

Type Description
Series:HA
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:H3A
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:1.661" L x 1.189" W x 0.945" H (42.20mm x 30.20mm x 24.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Zinc, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
