09302240307

09302240307

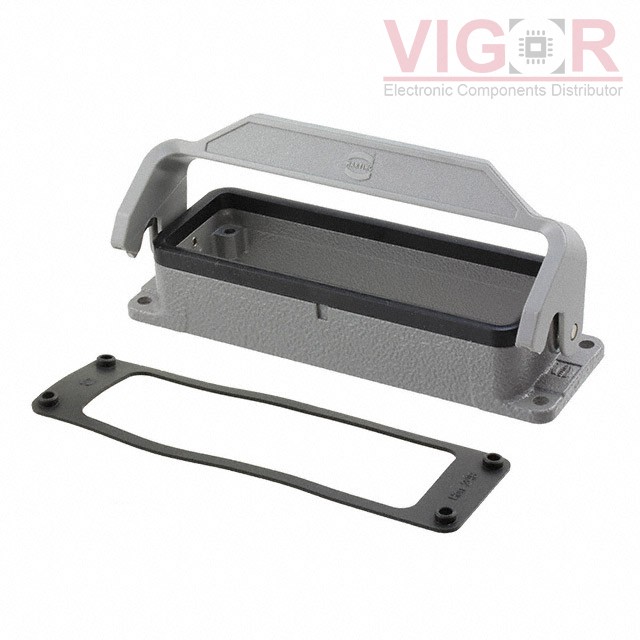

Image is for reference,
please contact us to get the real picture

Part No :

09302240307

Manufacturer
HARTING
Description
HAN 24B-HMC-AGG-LB
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 20 - Aug 24 2025
DataSheet
09302240307 PDF
Availability
12 pieces
Unit Price
$34.63000

Current price of 09302240307 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09302240307 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:24B
Lock Location:Locking Clip (1) on Base Bottom
Thread Size:-
Size / Dimension:5.512" L x 1.709" W x 1.138" H (140.00mm x 43.40mm x 28.90mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
