09620100301

09620100301

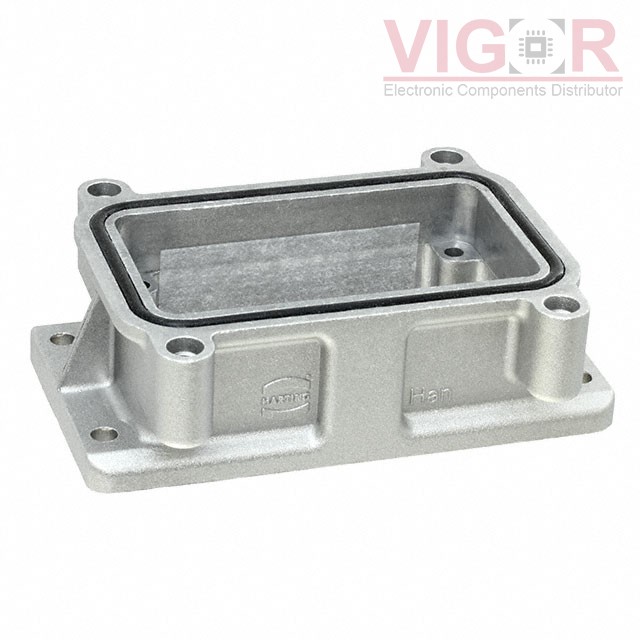

Image is for reference,
please contact us to get the real picture

Part No :

09620100301

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ10B
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 18 - Aug 22 2025
DataSheet
09620100301 PDF
Availability
12 pieces
Unit Price
$92.33000

Current price of 09620100301 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09620100301 Specifications
Type Description
Series:Han® EMC
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:10B
Lock Location:Screw Locks on Hood
Thread Size:-
Size / Dimension:3.661" L x 2.583" W x 1.110" H (93.00mm x 65.60mm x 28.20mm)
Housing Color:-
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:EMC Coating
Operating Temperature:-40°C ~ 125°C
