09300160381

09300160381

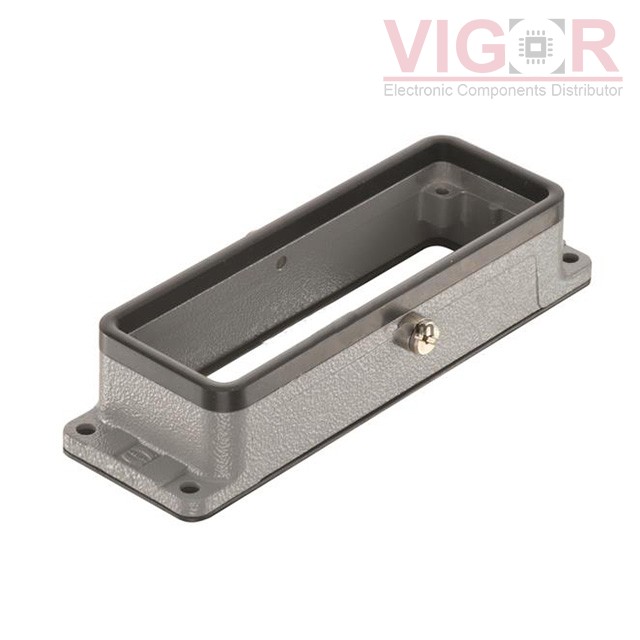

Image is for reference,
please contact us to get the real picture

Part No :

09300160381

Manufacturer
HARTING
Description
CONN BASE BOTTOM ENTRY SZ16B
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 24 - Aug 28 2025
DataSheet
09300160381 PDF
Availability
6 pieces
Unit Price
$42.55000

Current price of 09300160381 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09300160381 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Base - Panel Mount
Style:Bottom Entry
Size:16B
Lock Location:Locking Clip (1) on Hood
Thread Size:-
Size / Dimension:4.449" L x 1.709" W x 1.138" H (113.00mm x 43.40mm x 28.90mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
