09300100422

09300100422

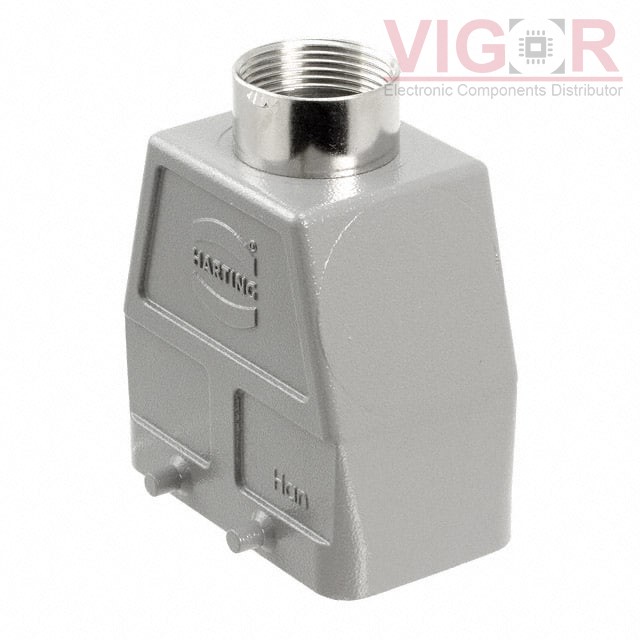

Image is for reference,
please contact us to get the real picture

Part No :

09300100422

Manufacturer
HARTING
Description
CONN HOOD TOP ENTRY SZ10B PG21
Catalog
Heavy Duty Connectors - Housings, Hoods, Bases
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
09300100422 PDF
Availability
62 pieces
Unit Price
$28.56000

Current price of 09300100422 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09300100422 Specifications
Type Description
Series:Han® B
Package:Bulk
Part Status:Active
Connector Type:Hood
Style:Top Entry
Size:10B
Lock Location:Locking Clip (2) on Base Bottom
Thread Size:PG21
Size / Dimension:2.858" L x 1.693" W x 3.425" H (72.60mm x 43.00mm x 87.00mm)
Housing Color:Gray
Features:-
Ingress Protection:IP65 - Dust Tight, Water Resistant
Housing Material:Aluminum, Die Cast
Housing Finish:Powder Coated
Operating Temperature:-40°C ~ 125°C
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT 1654090000

1654090000

CONN HOOD SIDE ENTRY SZ4 PG21
HOT 19430100322

19430100322

HAN-ECO 10B HOUSING, DOUBLE LEVE

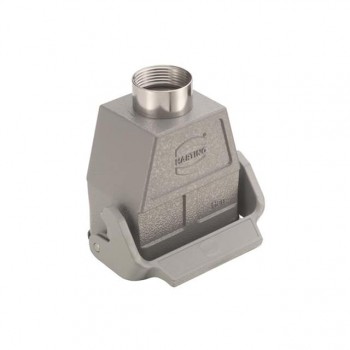

HOT 09300160751
