09160283001

09160283001

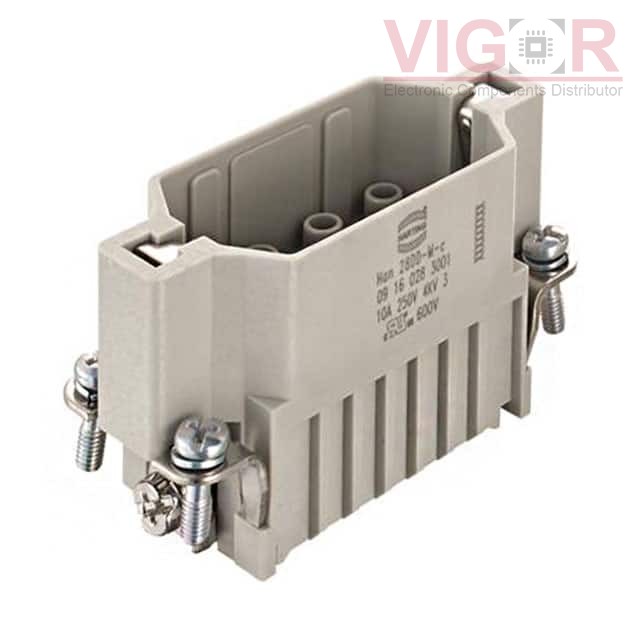

Image is for reference,
please contact us to get the real picture

Part No :

09160283001

Manufacturer
HARTING
Description
HAN 28DD MALE CRIMP INSERT
Catalog
Heavy Duty Connectors - Inserts, Modules
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
09160283001 PDF
Availability
5 pieces
Unit Price
$19.55000

Current price of 09160283001 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

09160283001 Specifications
Type Description
Series:Han® DD
Package:Bulk
Part Status:Active
Connector Type:Insert without Contacts
Gender:Female
Number of Positions:28+Ground
Size:10A
Termination Style:Crimp
Voltage Rating:250V
Current Rating (Amps):10A
Contact Type:Han® D
Operating Temperature:-40°C ~ 125°C
