Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of FN9233-6-06 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]
Type | Description |
---|---|
Series: | FN 9233 |
Package: | Tray |
Part Status: | Active |
Connector Style: | IEC 320-C14 |
Connector Type: | Receptacle, Male Blades |
Current - IEC: | - |
Voltage - IEC: | - |
Current - UL: | 6A |
Voltage - UL: | 250VAC |
Filter Type: | Filtered (EMI, RFI) - Commercial |
Accomodates a Fuse: | No |
Number of Positions: | 3 |
Mounting Type: | Panel Mount, Flange |
Termination: | Quick Connect - 0.250" (6.3mm) |
Switch Features: | - |
Features: | Front or Rear Side Mount |
Fuse Holder, Drawer: | - |
Panel Cutout Dimensions: | Rectangular - 28.50mm x 21.50mm |
Panel Thickness: | - |
Material Flammability Rating: | UL94 V-2 |
Ingress Protection: | IP40 |
Approval Agency: | CQC, CSA, ENEC, UL |

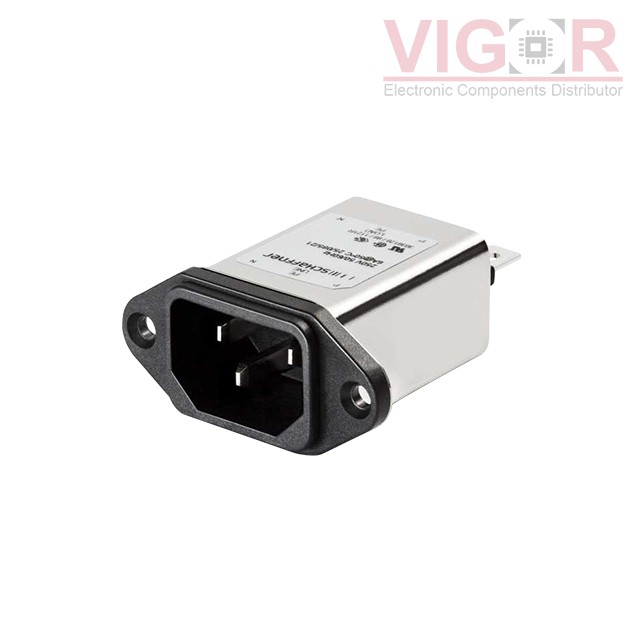

PWR ENT RCPT IEC320-C14 PANEL QC
