5015942211

5015942211

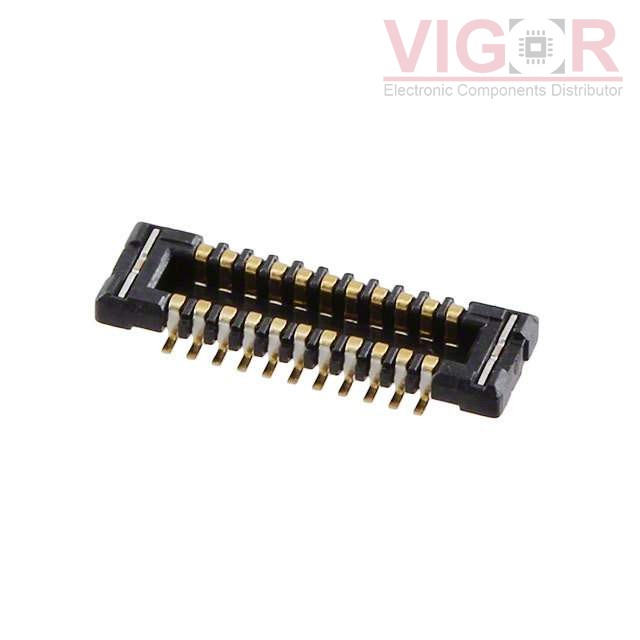

Image is for reference,
please contact us to get the real picture

Part No :

5015942211

Manufacturer
Woodhead - Molex
Description
CONN PLUG 22POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
May 12 - May 16 2024
DataSheet
5015942211 PDF
Availability
1213 pieces
Unit Price
$1.10000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 5015942211 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

5015942211 Specifications
Type Description
Series:SlimStack 501594
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Plug, Outer Shroud Contacts
Number of Positions:22
Pitch:0.016" (0.40mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Solder Retention
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
Mated Stacking Heights:0.9mm
Height Above Board:0.028" (0.71mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
