BTH-090-03-L-D-A-TR

BTH-090-03-L-D-A-TR

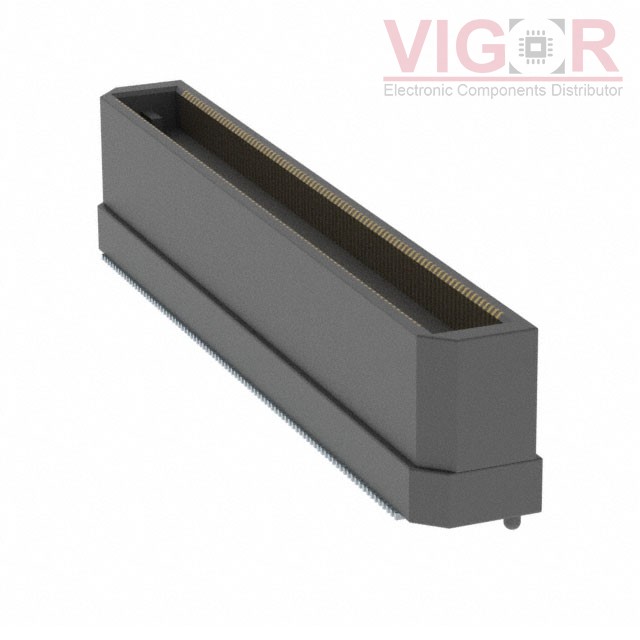

Image is for reference,
please contact us to get the real picture

Part No :

BTH-090-03-L-D-A-TR

Manufacturer
Samtec, Inc.
Description
CONN HDR 180POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
BTH-090-03-L-D-A-TR PDF
Availability
0 pieces
Unit Price
$12.52907

Current price of BTH-090-03-L-D-A-TR is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

BTH-090-03-L-D-A-TR Specifications
Type Description
Series:BTH
Package:Tape & Reel (TR)
Part Status:Active
Connector Type:Header, Outer Shroud Contacts
Number of Positions:180
Pitch:0.020" (0.50mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:11mm
Height Above Board:0.404" (10.27mm)
