TX25-120P-LT-H1E

TX25-120P-LT-H1E

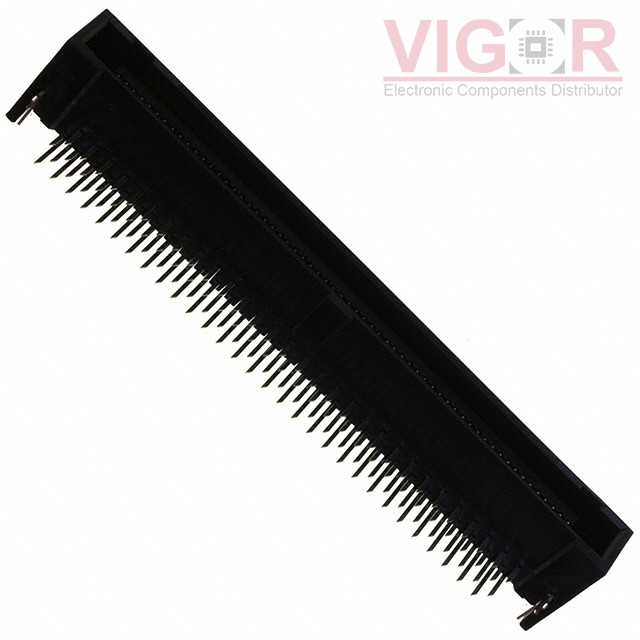

Image is for reference,
please contact us to get the real picture

Part No :

TX25-120P-LT-H1E

Manufacturer
JAE Electronics
Description
CONN PLUG 120POS R/A GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Aug 15 - Aug 19 2025
DataSheet
TX25-120P-LT-H1E PDF
Availability
2069 pieces
Unit Price
$3.43000

Current price of TX25-120P-LT-H1E is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TX25-120P-LT-H1E Specifications
Type Description
Series:TX25
Package:Tray
Part Status:Active
Connector Type:Plug, Center Strip Contacts
Number of Positions:120
Pitch:0.050" (1.27mm)
Number of Rows:2
Mounting Type:Through Hole, Right Angle
Features:Board Lock
Contact Finish:Gold
Contact Finish Thickness:3.94µin (0.10µm)
Mated Stacking Heights:-
Height Above Board:0.354" (9.00mm)
