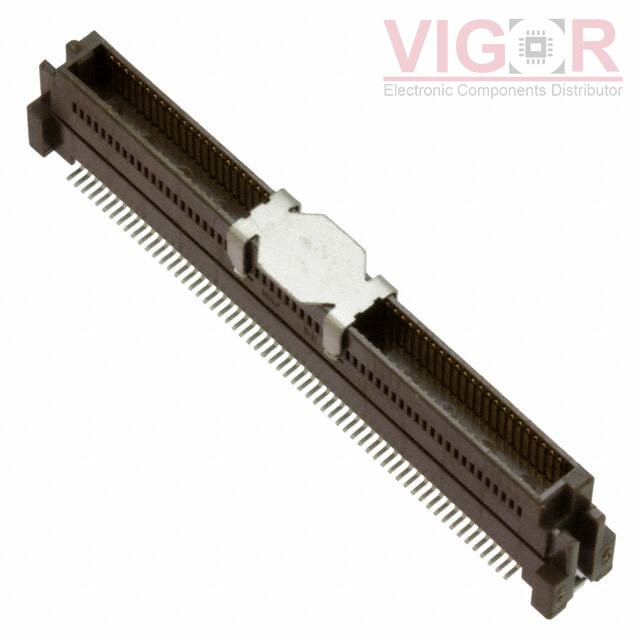

Image is for reference,
please contact us to get the real picture

Part No :

0536271274

Manufacturer
Woodhead - Molex
Description
CONN PLUG 120POS SMD GOLD
Catalog
Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
0536271274 PDF
Availability
261 pieces
Unit Price
$13.54000

Current price of 0536271274 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0536271274 Specifications
Type Description
Series:SlimStack 53627
Package:Tape & Reel (TR)Cut Tape (CT)
Part Status:Active
Connector Type:Plug, Outer Shroud Contacts
Number of Positions:120
Pitch:0.025" (0.64mm)
Number of Rows:2
Mounting Type:Surface Mount
Features:Board Guide, Solder Retention
Contact Finish:Gold
Contact Finish Thickness:10.0µin (0.25µm)
Mated Stacking Heights:10mm, 16mm
Height Above Board:0.354" (9.00mm)
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
