6-146506-1

6-146506-1

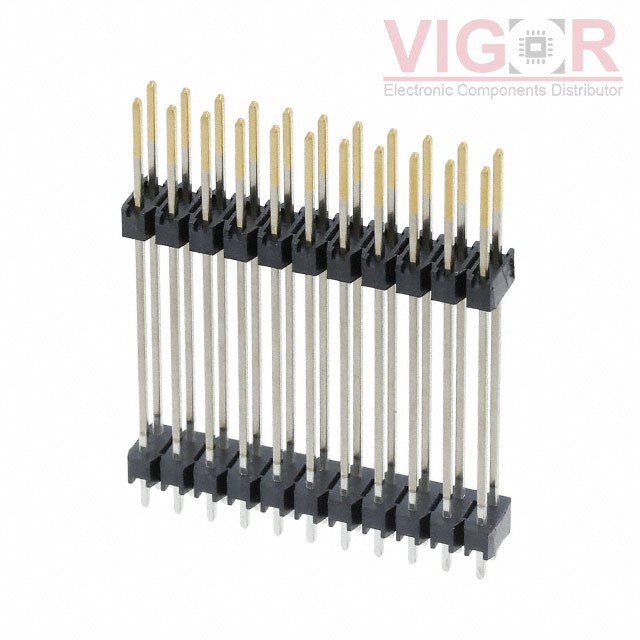

Image is for reference,
please contact us to get the real picture

Part No :

6-146506-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HDR 22POS 0.1 STACK T/H
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
6-146506-1 PDF
Availability
0 pieces
Unit Price
$9.39860

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of 6-146506-1 is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

6-146506-1 Specifications
Type Description
Series:AMPMODU Mod II
Package:Bulk
Part Status:Active
Number of Positions:22
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:1.330" (33.782mm)
Length - Post (Mating):0.330" (8.382mm)
Length - Stack Height:0.900" (22.860mm)
Length - Tail:0.100" (2.540mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):15.0µin (0.38µm)
Color:Black
