FW-08-03-L-D-258-100-A

FW-08-03-L-D-258-100-A

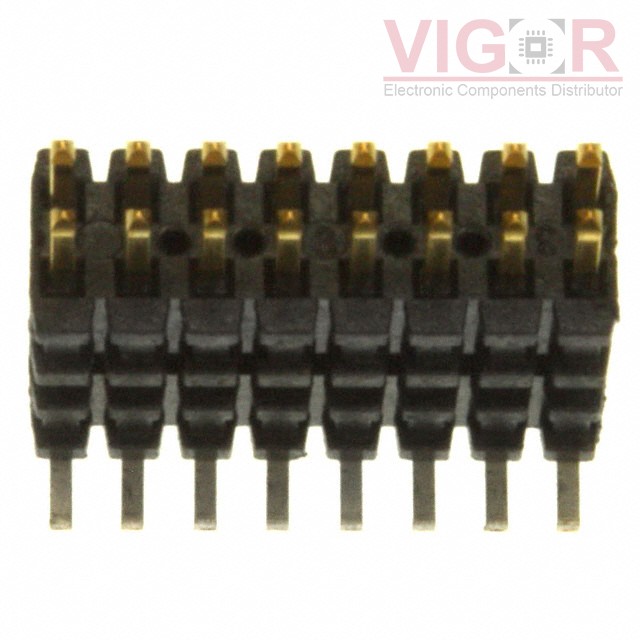

Image is for reference,
please contact us to get the real picture

Part No :

FW-08-03-L-D-258-100-A

Manufacturer
Samtec, Inc.
Description
CONN HDR 16POS 0.05 STACK SMD
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
May 19 - May 23 2024
DataSheet
FW-08-03-L-D-258-100-A PDF
Availability
0 pieces
Unit Price
$3.56000

Due to the large price fluctuation in 2021-2022, please send an inquiry to get the latest quotation, The current price of FW-08-03-L-D-258-100-A is for reference only, if you want to get the best price, please submit an inquiry or email directly to our sales team [email protected]

FW-08-03-L-D-258-100-A Specifications
Type Description
Series:Flex Stack, FW
Package:Tube
Part Status:Active
Number of Positions:16
Pitch:0.050" (1.27mm)
Number of Rows:2
Row Spacing:0.050" (1.27mm)
Length - Overall Pin:0.358" (9.093mm)
Length - Post (Mating):0.100" (2.540mm)
Length - Stack Height:0.258" (6.553mm)
Length - Tail:-
Mounting Type:Surface Mount
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
Color:Black
