9-146500-0

9-146500-0

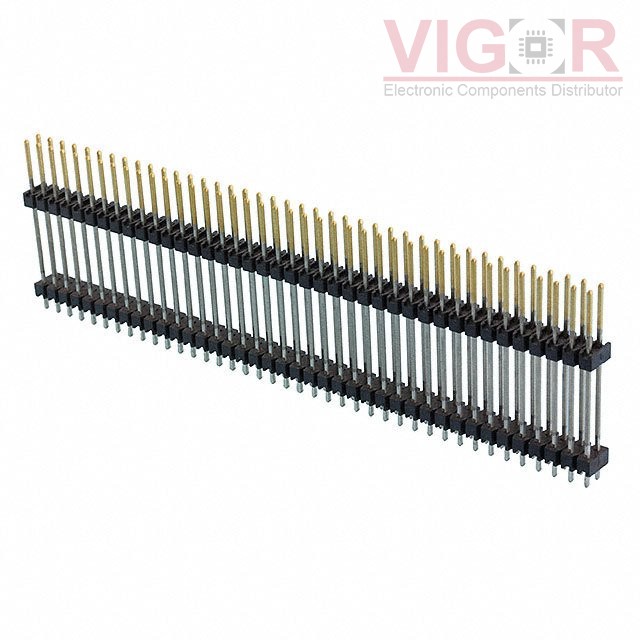

Image is for reference,
please contact us to get the real picture

Part No :

9-146500-0

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HDR 80POS 0.1 STACK T/H
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
9-146500-0 PDF
Availability
0 pieces
Unit Price
$20.37000

Current price of 9-146500-0 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

9-146500-0 Specifications
Type Description
Series:AMPMODU Mod II
Package:Bulk
Part Status:Active
Number of Positions:80
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:1.130" (28.700mm)
Length - Post (Mating):0.330" (8.382mm)
Length - Stack Height:0.700" (17.780mm)
Length - Tail:0.100" (2.540mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):15.0µin (0.38µm)
Color:Black
