5-146494-3

5-146494-3

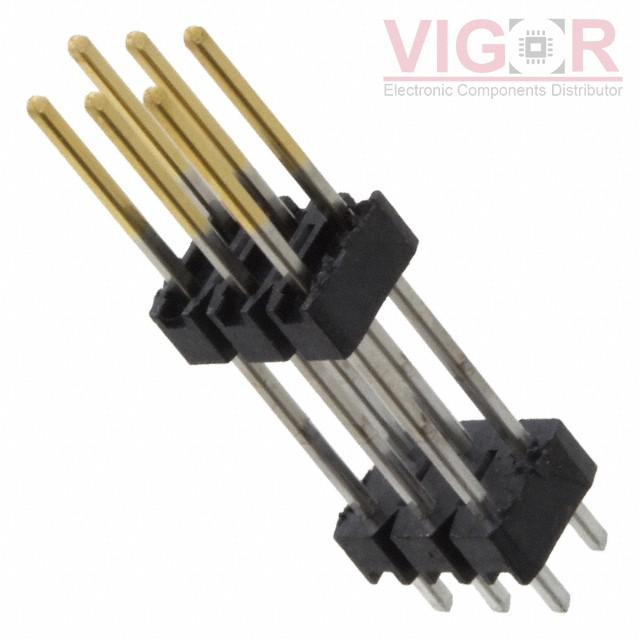

Image is for reference,
please contact us to get the real picture

Part No :

5-146494-3

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HDR 6POS 0.1 STACK T/H GOLD
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 02 - Jul 06 2025
DataSheet
5-146494-3 PDF
Availability
0 pieces
Unit Price
$0.58853

Current price of 5-146494-3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

5-146494-3 Specifications
Type Description
Series:AMPMODU Mod II
Package:Bulk
Part Status:Active
Number of Positions:6
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:0.930" (23.622mm)
Length - Post (Mating):0.330" (8.382mm)
Length - Stack Height:0.500" (12.700mm)
Length - Tail:0.100" (2.540mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):15.0µin (0.38µm)
Color:Black
