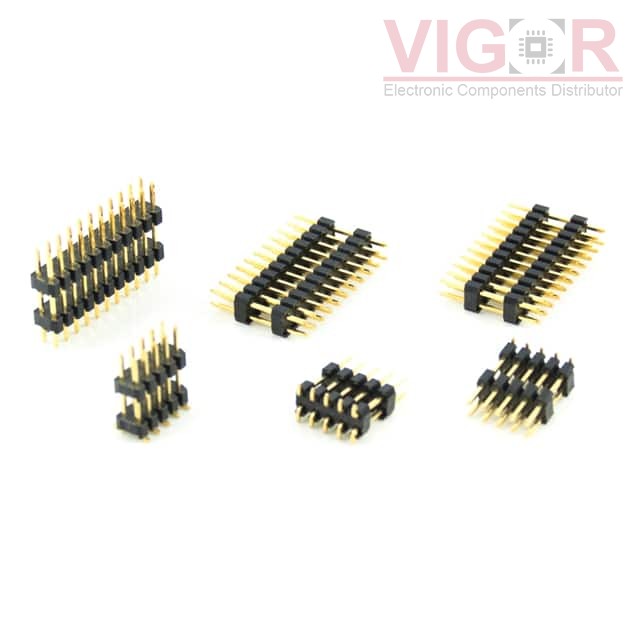

2114-2X10G00S-3-3-17.5B

2114-2X10G00S-3-3-17.5B

Image is for reference,
please contact us to get the real picture

Part No :

2114-2X10G00S-3-3-17.5B

Manufacturer
Oupiin
Description
PIN HEADER, DOUBLE ROW, 20 PIN,
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 03 - Jul 07 2025
DataSheet
2114-2X10G00S-3-3-17.5B PDF
Availability
104 pieces
Unit Price
$0.77000

Current price of 2114-2X10G00S-3-3-17.5B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

2114-2X10G00S-3-3-17.5B Specifications
Type Description
Series:2114
Package:Bulk
Part Status:Active
Number of Positions:20
Pitch:0.079" (2.00mm)
Number of Rows:2
Row Spacing:0.079" (2.00mm)
Length - Overall Pin:0.689" (17.500mm)
Length - Post (Mating):0.118" (3.000mm)
Length - Stack Height:0.453" (11.500mm)
Length - Tail:0.118" (3.000mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):Flash
Color:Black
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
Hot Products
HOT DW-50-07-G-S-200

DW-50-07-G-S-200

CONN HDR 50POS 0.1 STACK T/H

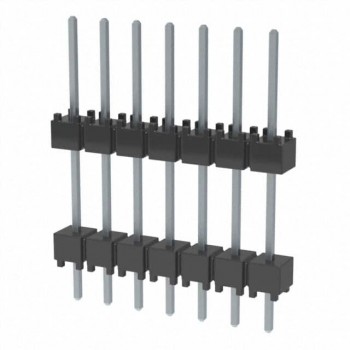

HOT DW-07-10-T-S-450

DW-07-10-T-S-450

CONN HDR 7POS 0.1 STACK T/H TIN

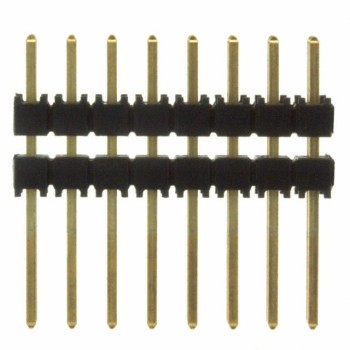

HOT EW-08-09-G-D-250
