DW-06-10-L-D-500

DW-06-10-L-D-500

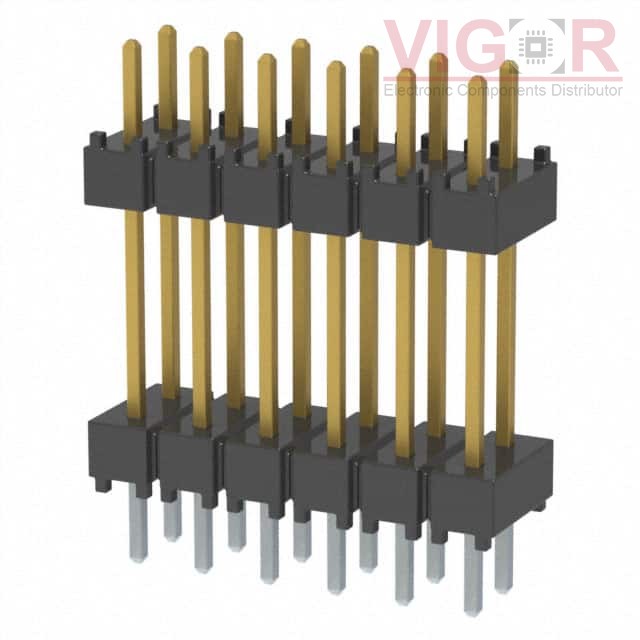

Image is for reference,
please contact us to get the real picture

Part No :

DW-06-10-L-D-500

Manufacturer
Samtec, Inc.
Description
CONN HDR 12POS 0.1 STACK T/H
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 05 - Jul 09 2025
DataSheet
DW-06-10-L-D-500 PDF
Availability
1547 pieces
Unit Price
$1.61000

Current price of DW-06-10-L-D-500 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DW-06-10-L-D-500 Specifications
Type Description
Series:Flex Stack, DW
Package:Bulk
Part Status:Active
Number of Positions:12
Pitch:0.100" (2.54mm)
Number of Rows:2
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:0.830" (21.082mm)
Length - Post (Mating):0.220" (5.588mm)
Length - Stack Height:0.500" (12.700mm)
Length - Tail:0.110" (2.794mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
Color:Black
