DW-22-12-G-T-670

DW-22-12-G-T-670

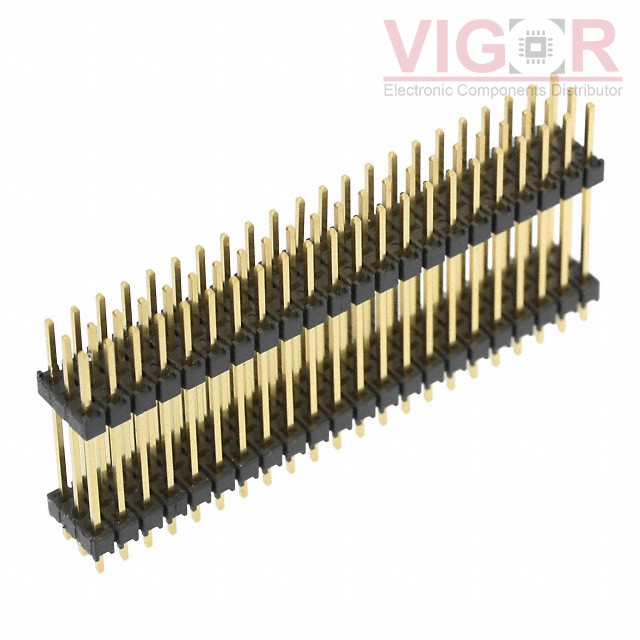

Image is for reference,
please contact us to get the real picture

Part No :

DW-22-12-G-T-670

Manufacturer
Samtec, Inc.
Description
CONN HDR 66POS 0.1 STACK T/H
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
DW-22-12-G-T-670 PDF
Availability
121 pieces
Unit Price
$11.01000

Current price of DW-22-12-G-T-670 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DW-22-12-G-T-670 Specifications
Type Description
Series:Flex Stack, DW
Package:Bulk
Part Status:Active
Number of Positions:66
Pitch:0.100" (2.54mm)
Number of Rows:3
Row Spacing:0.100" (2.54mm)
Length - Overall Pin:1.030" (26.162mm)
Length - Post (Mating):0.250" (6.350mm)
Length - Stack Height:0.670" (17.018mm)
Length - Tail:0.110" (2.794mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
Color:Black
