TW-40-03-S-D-285-183

TW-40-03-S-D-285-183

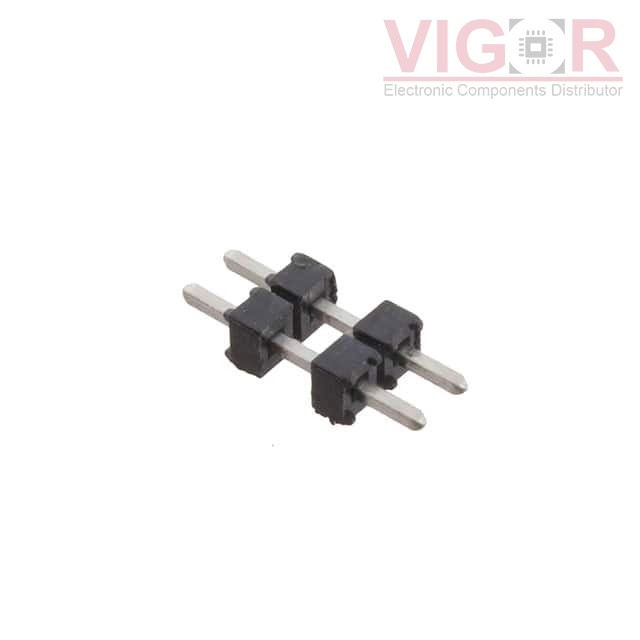

Image is for reference,
please contact us to get the real picture

Part No :

TW-40-03-S-D-285-183

Manufacturer
Samtec, Inc.
Description
CONN BRD STACK 2.00 80POS
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
TW-40-03-S-D-285-183 PDF
Availability
111 pieces
Unit Price
$17.07000

Current price of TW-40-03-S-D-285-183 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TW-40-03-S-D-285-183 Specifications
Type Description
Series:TW
Package:Bulk
Part Status:Active
Number of Positions:80
Pitch:0.079" (2.00mm)
Number of Rows:2
Row Spacing:0.079" (2.00mm)
Length - Overall Pin:0.535" (13.589mm)
Length - Post (Mating):0.067" (1.700mm)
Length - Stack Height:0.285" (7.239mm)
Length - Tail:0.183" (4.658mm)
Mounting Type:Through Hole
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):30.0µin (0.76µm)
Color:Black
