AW-10-03-G-D-122-097

AW-10-03-G-D-122-097

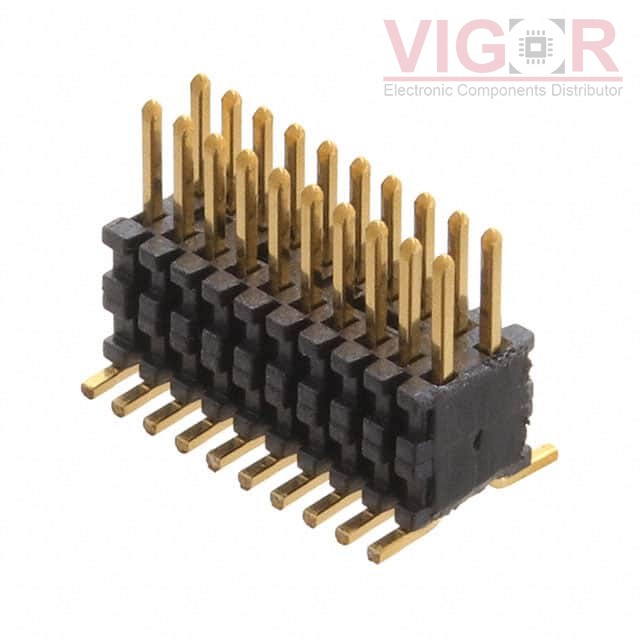

Image is for reference,
please contact us to get the real picture

Part No :

AW-10-03-G-D-122-097

Manufacturer
Samtec, Inc.
Description
CONN BRD STACK 0.8MM 20POS
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 07 - Jul 11 2025
DataSheet
AW-10-03-G-D-122-097 PDF
Availability
73 pieces
Unit Price
$5.56000

Current price of AW-10-03-G-D-122-097 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

AW-10-03-G-D-122-097 Specifications
Type Description
Series:Flex Stack, AW
Package:Tube
Part Status:Active
Number of Positions:20
Pitch:0.031" (0.80mm)
Number of Rows:2
Row Spacing:0.047" (1.20mm)
Length - Overall Pin:-
Length - Post (Mating):0.097" (2.464mm)
Length - Stack Height:0.122" (3.099mm)
Length - Tail:-
Mounting Type:Surface Mount
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
Color:Black, Natural
