TW-20-07-L-D-500-SM

TW-20-07-L-D-500-SM

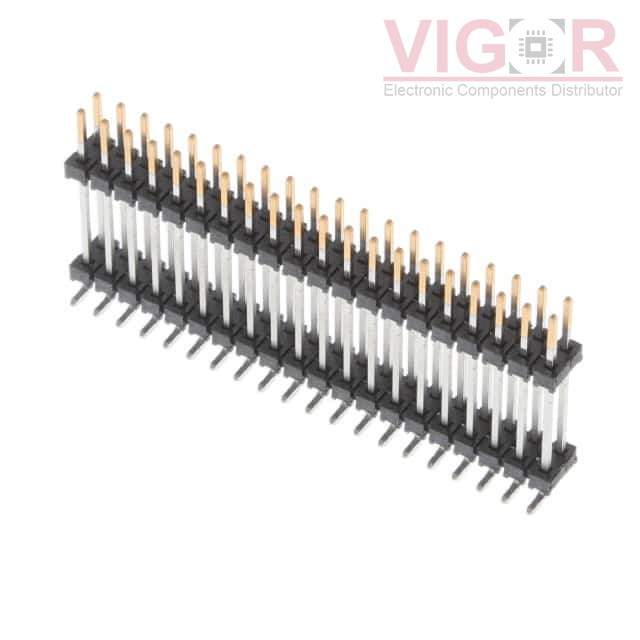

Image is for reference,
please contact us to get the real picture

Part No :

TW-20-07-L-D-500-SM

Manufacturer
Samtec, Inc.
Description
CONN BRD STACK 2MM 40POS
Catalog
Rectangular Connectors - Board Spacers, Stackers (Board to Board)
Shipped from
HK warehouse
Expected Shipping Date
Jul 11 - Jul 15 2025
DataSheet
TW-20-07-L-D-500-SM PDF
Availability
40 pieces
Unit Price
$8.00000

Current price of TW-20-07-L-D-500-SM is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TW-20-07-L-D-500-SM Specifications
Type Description
Series:Flex Stack, TW
Package:Tube
Part Status:Active
Number of Positions:40
Pitch:0.079" (2.00mm)
Number of Rows:2
Row Spacing:0.079" (2.00mm)
Length - Overall Pin:0.751" (19.075mm)
Length - Post (Mating):0.183" (4.650mm)
Length - Stack Height:0.500" (12.700mm)
Length - Tail:-
Mounting Type:Surface Mount
Termination:Solder
Contact Finish - Post (Mating):Gold
Contact Finish Thickness - Post (Mating):10.0µin (0.25µm)
Color:Black
