TW-07-08-F-S-530-100

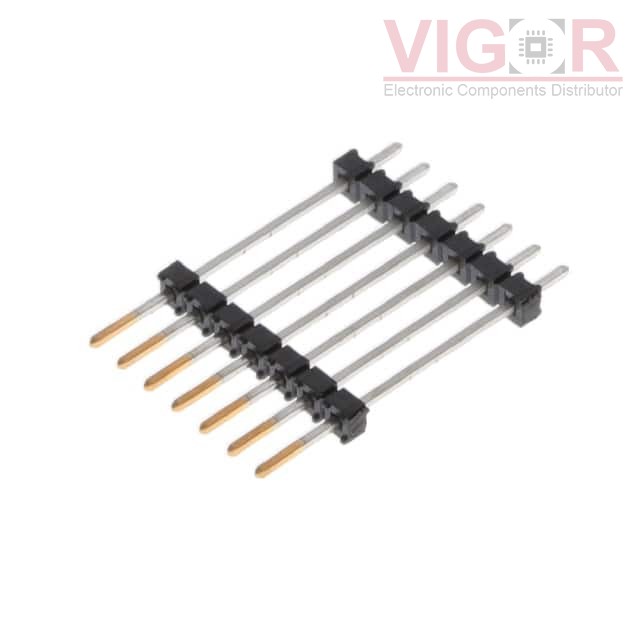

Image is for reference,
please contact us to get the real picture

Part No :: TW-07-08-F-S-530-100

Manufacturer: Samtec, Inc.

Description: CONN BRD STACK 2MM 7POS

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jul 08 - Jul 12 2025

DataSheet: TW-07-08-F-S-530-100 PDF

Availability: 131 pieces

Unit Price: ~~$1.44000~~

Current price of TW-07-08-F-S-530-100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

TW-07-08-F-S-530-100 Specifications

Type	Description
Series:	TW
Package:	Bulk
Part Status:	Active
Number of Positions:	7
Pitch:	0.079" (2.00mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.831" (21.107mm)
Length - Post (Mating):	0.201" (5.100mm)
Length - Stack Height:	0.530" (13.462mm)
Length - Tail:	0.100" (2.540mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	3.00µin (0.076µm)
Color:	Black
