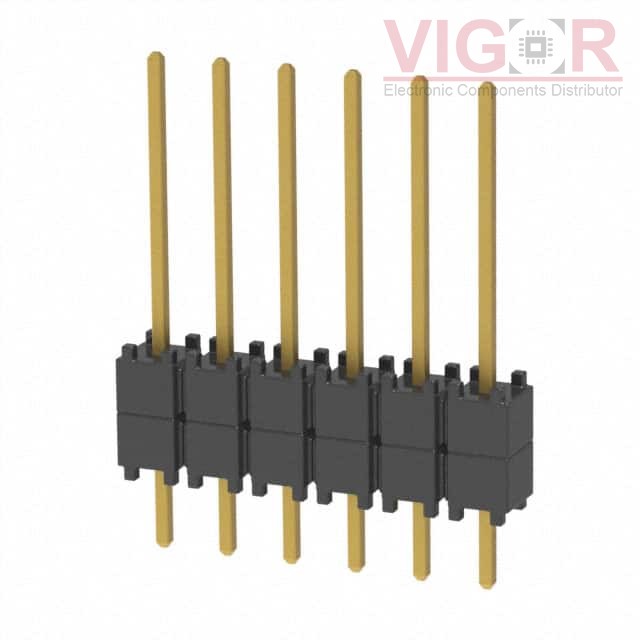

DW-06-09-G-S-200

Image is for reference,
please contact us to get the real picture

Part No :: DW-06-09-G-S-200

Manufacturer: Samtec, Inc.

Description: CONN HDR 6POS 0.1 STACK T/H GOLD

Catalog: Rectangular Connectors - Board Spacers, Stackers (Board to Board)

Shipped from: HK warehouse

Expected Shipping Date: Jun 30 - Jul 04 2025

DataSheet: DW-06-09-G-S-200 PDF

Availability: 0 pieces

Unit Price: ~~$0.00000~~

Current price of DW-06-09-G-S-200 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

DW-06-09-G-S-200 Specifications

Type	Description
Series:	Flex Stack, DW
Package:	Bulk
Part Status:	Active
Number of Positions:	6
Pitch:	0.100" (2.54mm)
Number of Rows:	1
Row Spacing:	-
Length - Overall Pin:	0.730" (18.542mm)
Length - Post (Mating):	0.420" (10.668mm)
Length - Stack Height:	0.200" (5.080mm)
Length - Tail:	0.110" (2.794mm)
Mounting Type:	Through Hole
Termination:	Solder
Contact Finish - Post (Mating):	Gold
Contact Finish Thickness - Post (Mating):	10.0µin (0.25µm)
Color:	Black
