109257016001003

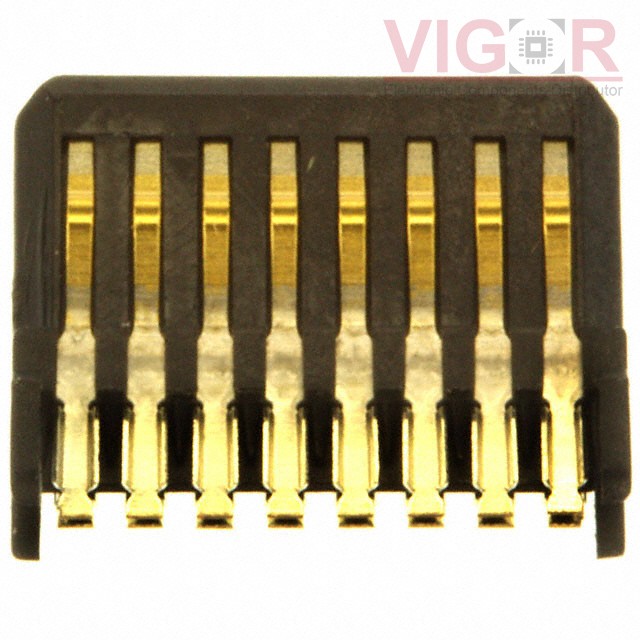

Image is for reference,
please contact us to get the real picture

Part No :: 109257016001003

Manufacturer: Elco (AVX)

Description: CONN PLUG 16POS SOLDER GOLD

Catalog: Rectangular Connectors - Free Hanging, Panel Mount

Shipped from: HK warehouse

Expected Shipping Date: Jul 01 - Jul 05 2025

DataSheet: 109257016001003 PDF

Availability: 3294 pieces

Unit Price: ~~$3.79000~~

Current price of 109257016001003 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

109257016001003 Specifications

Type	Description
Series:	9257
Package:	Bulk
Part Status:	Active
Connector Type:	Plug
Contact Type:	Non-Gender Specific
Number of Positions:	16
Pitch:	0.049" (1.25mm)
Number of Rows:	1
Row Spacing:	-
Mounting Type:	Free Hanging (In-Line)
Fastening Type:	-
Cable Termination:	Solder Cup
Wire Type:	Discrete
Wire Gauge:	-
Features:	-
Contact Finish:	Gold
Contact Finish Thickness:	31.5µin (0.80µm)
Color:	Black

Please confirm the specifications of the products when ordering.
