158120-1100

158120-1100

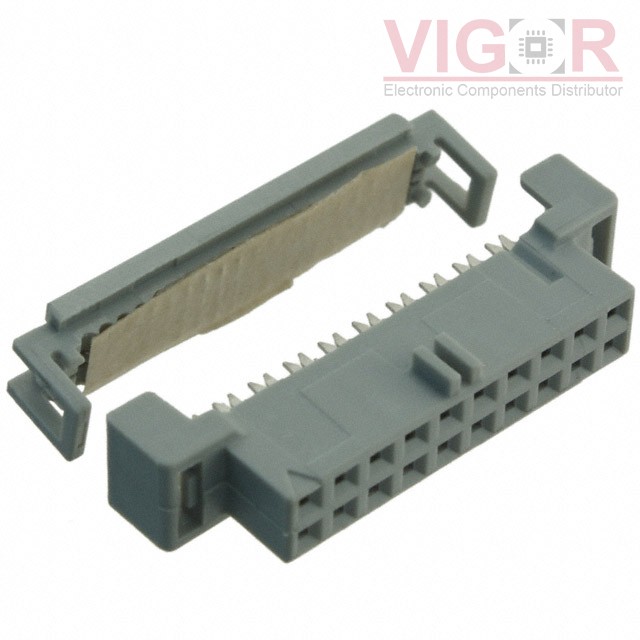

Image is for reference,
please contact us to get the real picture

Part No :

158120-1100

Manufacturer
3M
Description
CONN SOCKET 20POS IDC 28AWG GOLD
Catalog
Rectangular Connectors - Free Hanging, Panel Mount
Shipped from
HK warehouse
Expected Shipping Date
Jul 20 - Jul 24 2025
DataSheet
158120-1100 PDF
Availability
470 pieces
Unit Price
$5.23000

Current price of 158120-1100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

158120-1100 Specifications
Type Description
Series:158
Package:Tray
Part Status:Obsolete
Connector Type:Socket
Contact Type:Female Socket
Number of Positions:20
Pitch:0.079" (2.00mm)
Number of Rows:2
Row Spacing:0.079" (2.00mm)
Mounting Type:Free Hanging (In-Line)
Fastening Type:-
Cable Termination:IDC
Wire Type:Ribbon Cable
Wire Gauge:28 AWG
Features:Feed Through
Contact Finish:Gold
Contact Finish Thickness:30.0µin (0.76µm)
Color:Gray
