0026481180

0026481180

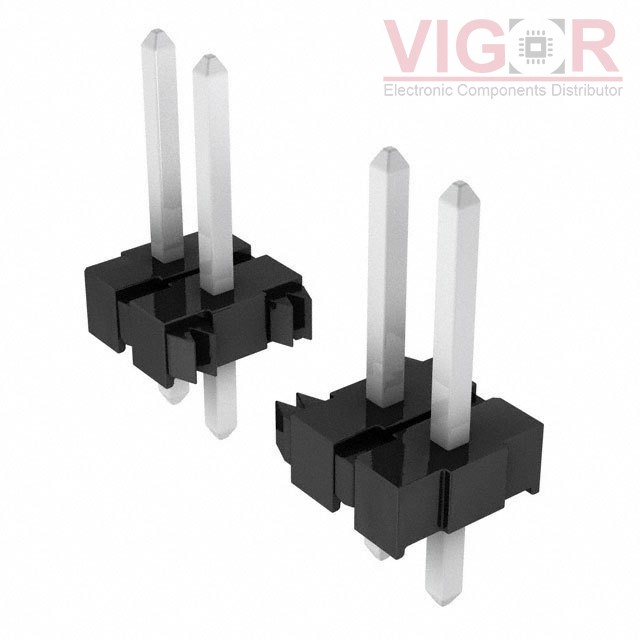

Image is for reference,
please contact us to get the real picture

Part No :

0026481180

Manufacturer
Woodhead - Molex
Description
CONN HEADER VERT 18POS 3.96MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jun 29 - Jul 03 2025
DataSheet
0026481180 PDF
Availability
0 pieces
Unit Price
$2.42000

Current price of 0026481180 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

0026481180 Specifications
Type Description
Series:KK396, 41661
Package:Bulk
Part Status:Active
Connector Type:Header, Breakaway
Contact Type:Male Pin
Pitch - Mating:0.156" (3.96mm)
Number of Positions:18
Number of Rows:1
Row Spacing - Mating:-
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Unshrouded
Mounting Type:Through Hole
Termination:Solder
Fastening Type:Push-Pull
Contact Length - Mating:0.590" (14.99mm)
Contact Length - Post:0.172" (4.37mm)
Overall Contact Length:0.890" (22.61mm)
Insulation Height:0.128" (3.25mm)
Contact Shape:Square
Contact Finish - Mating:Tin
Contact Finish Thickness - Mating:60.0µin (1.52µm)
Contact Finish - Post:Tin
Contact Material:Brass
Insulation Material:Polyester, Glass Filled
Features:-
Operating Temperature:-
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):-
Voltage Rating:-
