6-102557-1

6-102557-1

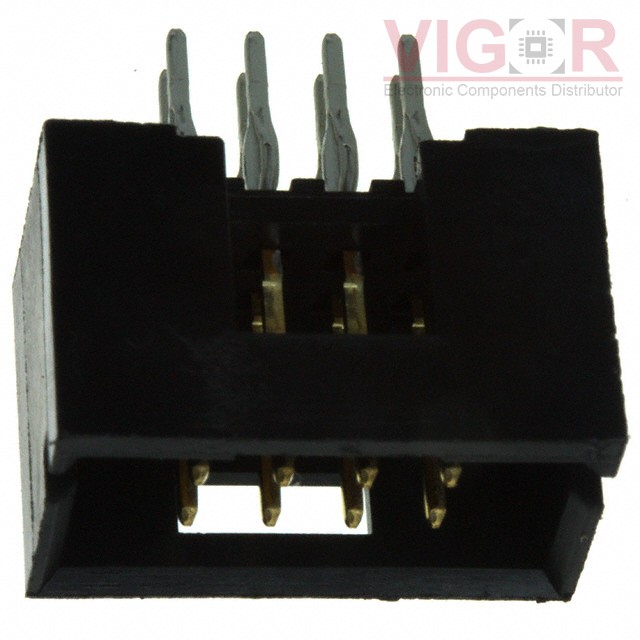

Image is for reference,
please contact us to get the real picture

Part No :

6-102557-1

Manufacturer
TE Connectivity AMP Connectors
Description
CONN HEADER VERT 8POS 2.54MM
Catalog
Rectangular Connectors - Headers, Male Pins
Shipped from
HK warehouse
Expected Shipping Date
Jul 01 - Jul 05 2025
DataSheet
6-102557-1 PDF
Availability
0 pieces
Unit Price
$2.22214

Current price of 6-102557-1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

6-102557-1 Specifications
Type Description
Series:AMPMODU Mod II
Package:Tray
Part Status:Active
Connector Type:Header
Contact Type:Male Pin
Pitch - Mating:0.100" (2.54mm)
Number of Positions:8
Number of Rows:2
Row Spacing - Mating:0.100" (2.54mm)
Number of Positions Loaded:All
Style:Board to Board or Cable
Shrouding:Shrouded - 4 Wall
Mounting Type:Through Hole
Termination:Press-Fit, Solder
Fastening Type:Detent Lock
Contact Length - Mating:0.320" (8.13mm)
Contact Length - Post:0.250" (6.35mm)
Overall Contact Length:0.660" (16.76mm)
Insulation Height:0.440" (11.18mm)
Contact Shape:Square
Contact Finish - Mating:Gold
Contact Finish Thickness - Mating:30.0µin (0.76µm)
Contact Finish - Post:Tin
Contact Material:Copper Alloy
Insulation Material:Thermoplastic
Features:-
Operating Temperature:-55°C ~ 105°C
Ingress Protection:-
Material Flammability Rating:UL94 V-0
Insulation Color:Black
Current Rating (Amps):3A
Voltage Rating:-
